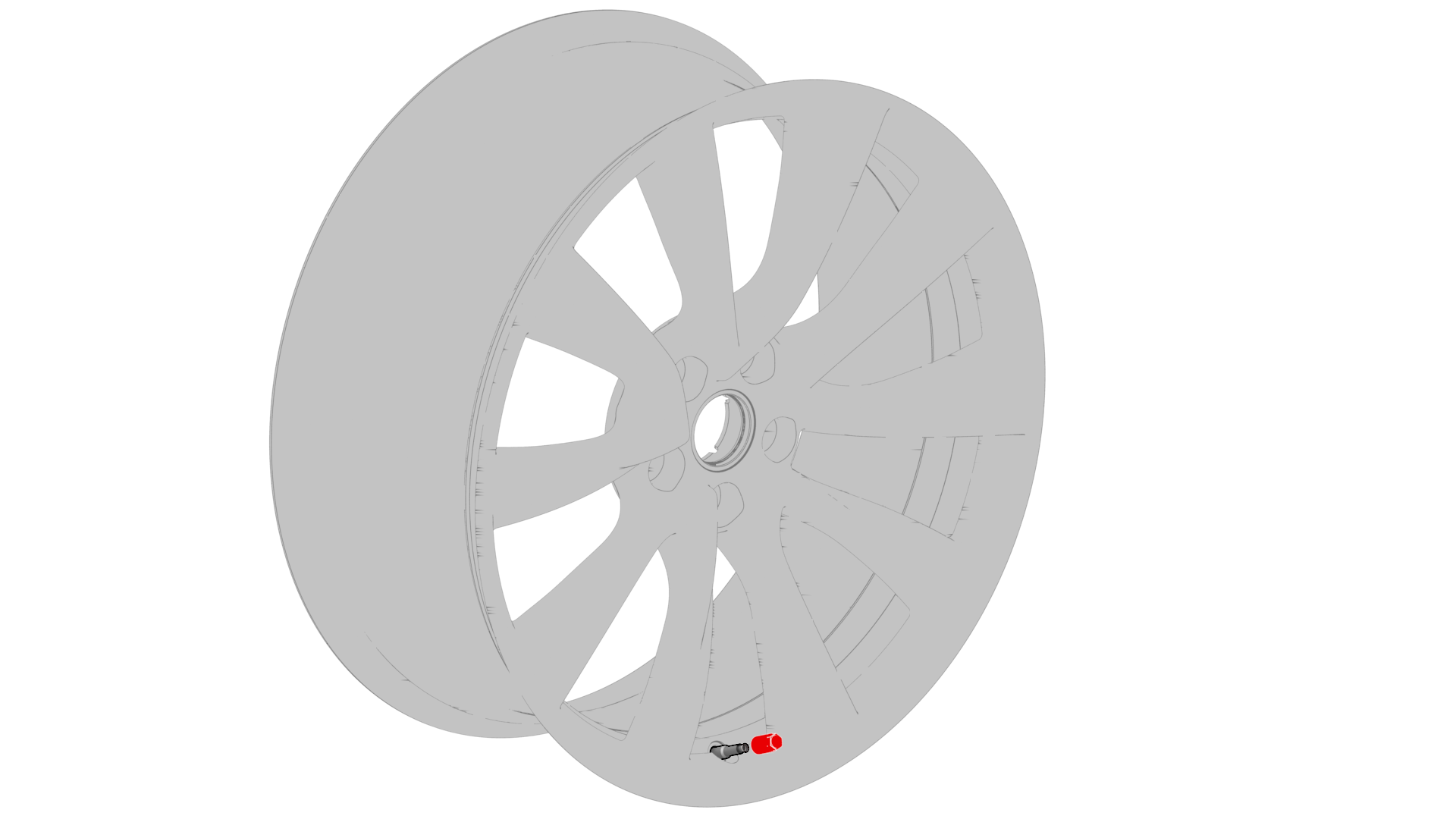

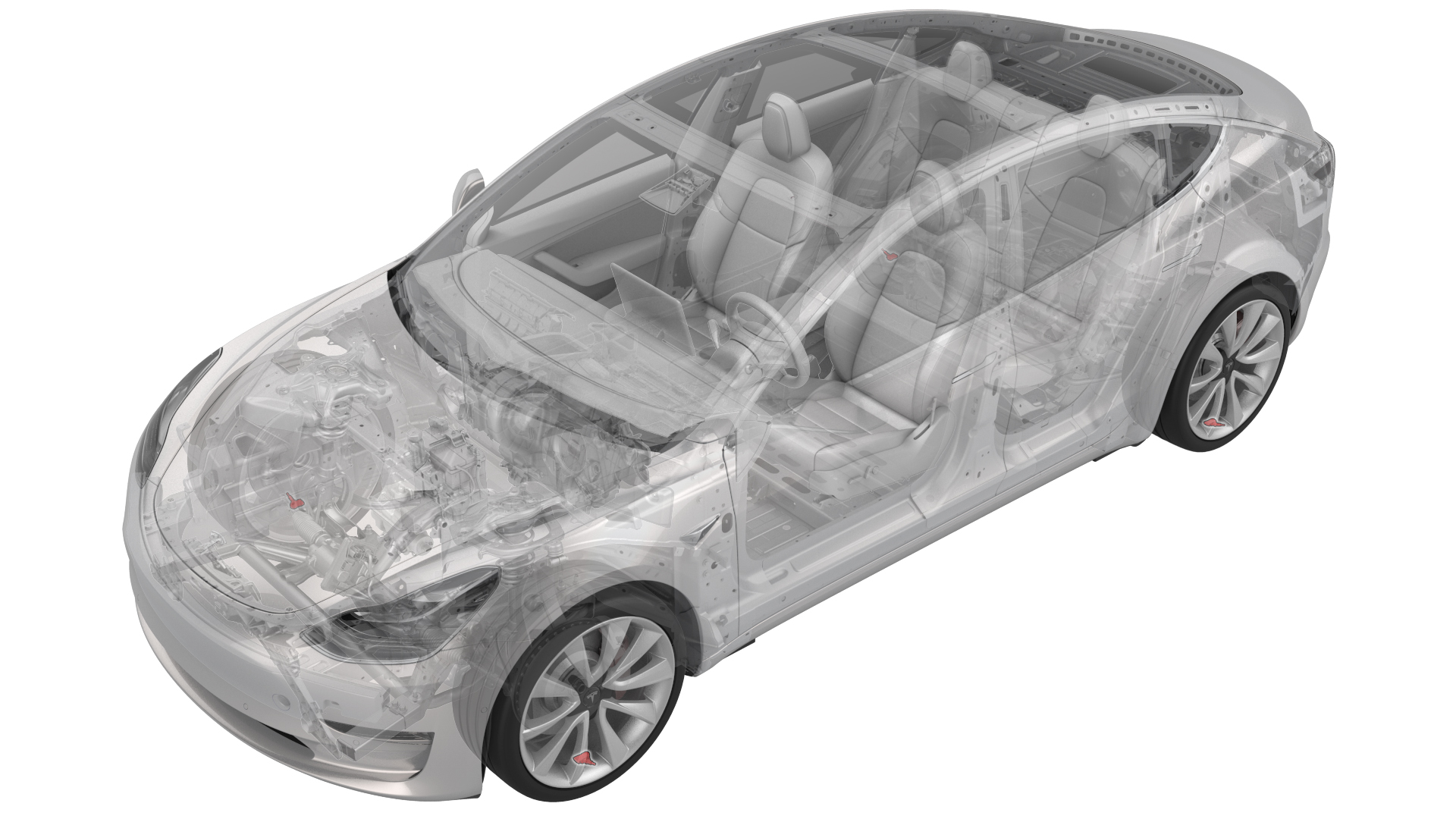

Sensor - TPMS (Remove and Replace)

Correction code 3404020234040202
Parent topic: 3404 - Tire Pressure Monitoring System (TPMS)

Remove

  1. Remove the wheel. See Wheel (Remove and Install).
  2. Place the wheel on the tire changer, with the outside of the wheel facing up.
  3. Insert the center clamp.
  4. Tighten the cone on the center clamp.
  5. Remove the valve core, and allow the tire to deflate.
  6. Position the upper bead roller at the edge of the rim.
  7. Rotate the tire to loosen the upper bead. Lubricate the bead as the tire rotates.
  8. Position the upper bead roller approximately 100 mm from the valve stem, and then compress the bead to expose the TPMS sensor.

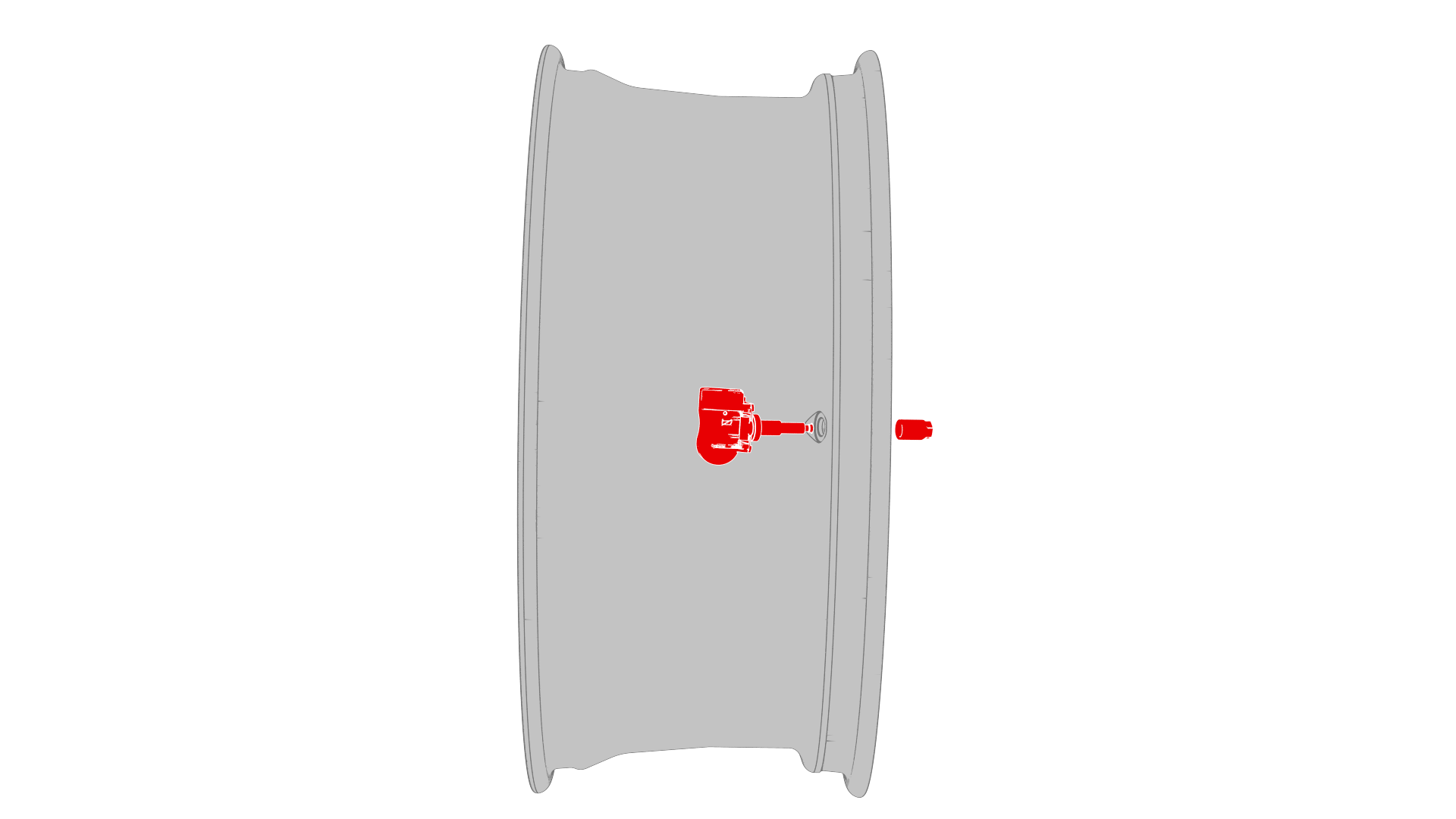

  9. Remove the nut that attaches the TPMS sensor to the wheel, and then remove the TPMS sensor.
1Remove the wheel. See Wheel (Remove and Install).
2Place the wheel on the tire changer, with the outside of the wheel facing up.
3Insert the center clamp.
4Tighten the cone on the center clamp.
5Remove the valve core, and allow the tire to deflate.
6Position the upper bead roller at the edge of the rim.
7Rotate the tire to loosen the upper bead. Lubricate the bead as the tire rotates.
8Position the upper bead roller approximately 100 mm from the valve stem, and then compress the bead to expose the TPMS sensor.
9Remove the nut that attaches the TPMS sensor to the wheel, and then remove the TPMS sensor.

Install

  1. Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.

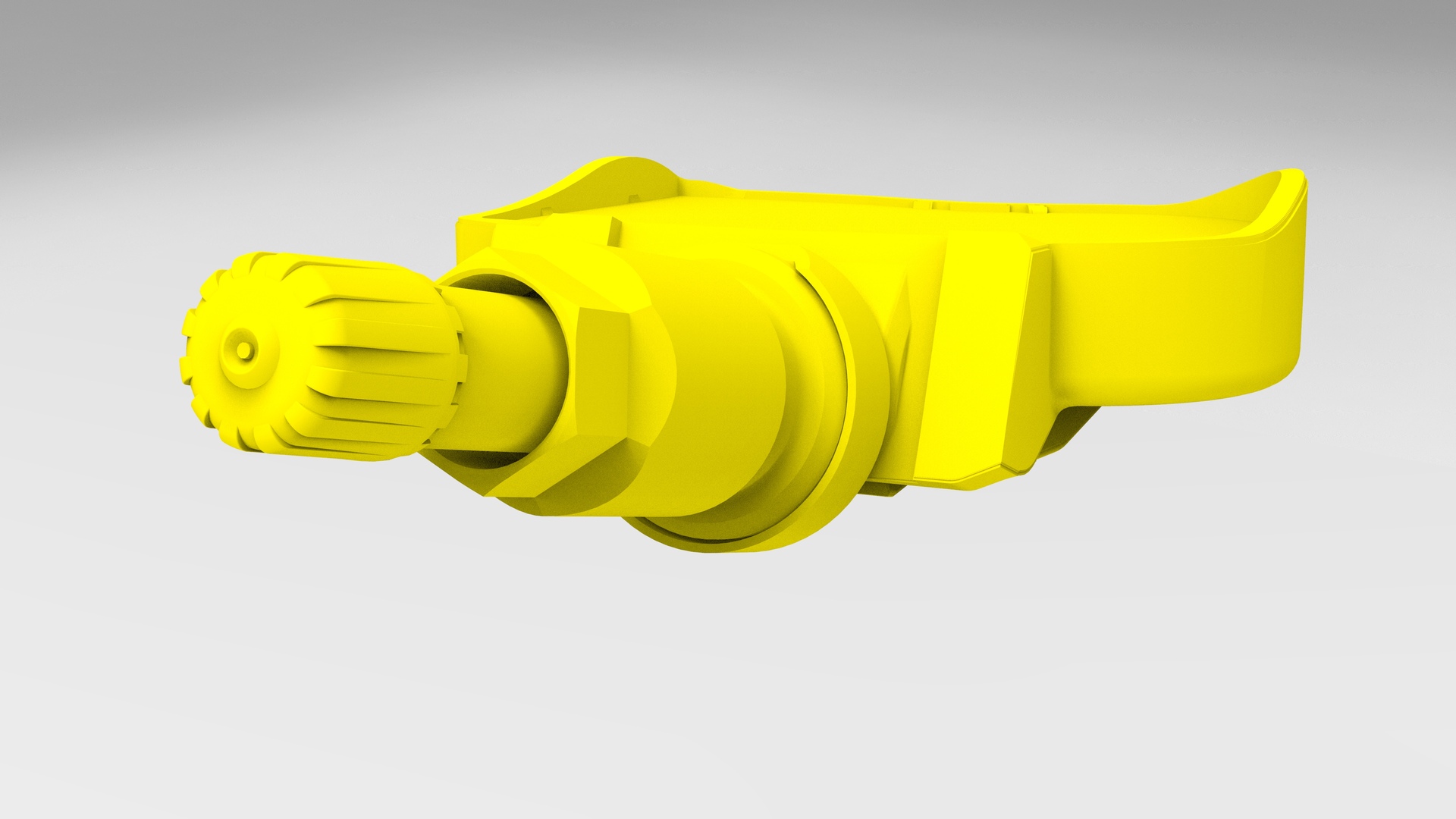

  2. Install the TPMS sensor so that it fits closely to the wheel.
  3. Install the nut that secures the TPMS sensor to the wheel.
    Torque 8 Nm
  4. Release the upper bead roller, and allow the bead to seat against the wheel.
  5. Inflate the tire to seat the bead.
  6. Install the valve stem core, and then remove the wheel from the tire changer.
  7. Rebalance the wheel. See Tire - Front - LH (Rebalance).
  8. Program the TPMS sensor ID. See Module - TPMS (Sensor ID Learn).
1Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.
2Install the TPMS sensor so that it fits closely to the wheel.
3Install the nut that secures the TPMS sensor to the wheel.
Torque 8 Nm
4Release the upper bead roller, and allow the bead to seat against the wheel.
5Inflate the tire to seat the bead.
6Install the valve stem core, and then remove the wheel from the tire changer.
7Rebalance the wheel. See Tire - Front - LH (Rebalance).
8Program the TPMS sensor ID. See Module - TPMS (Sensor ID Learn).
