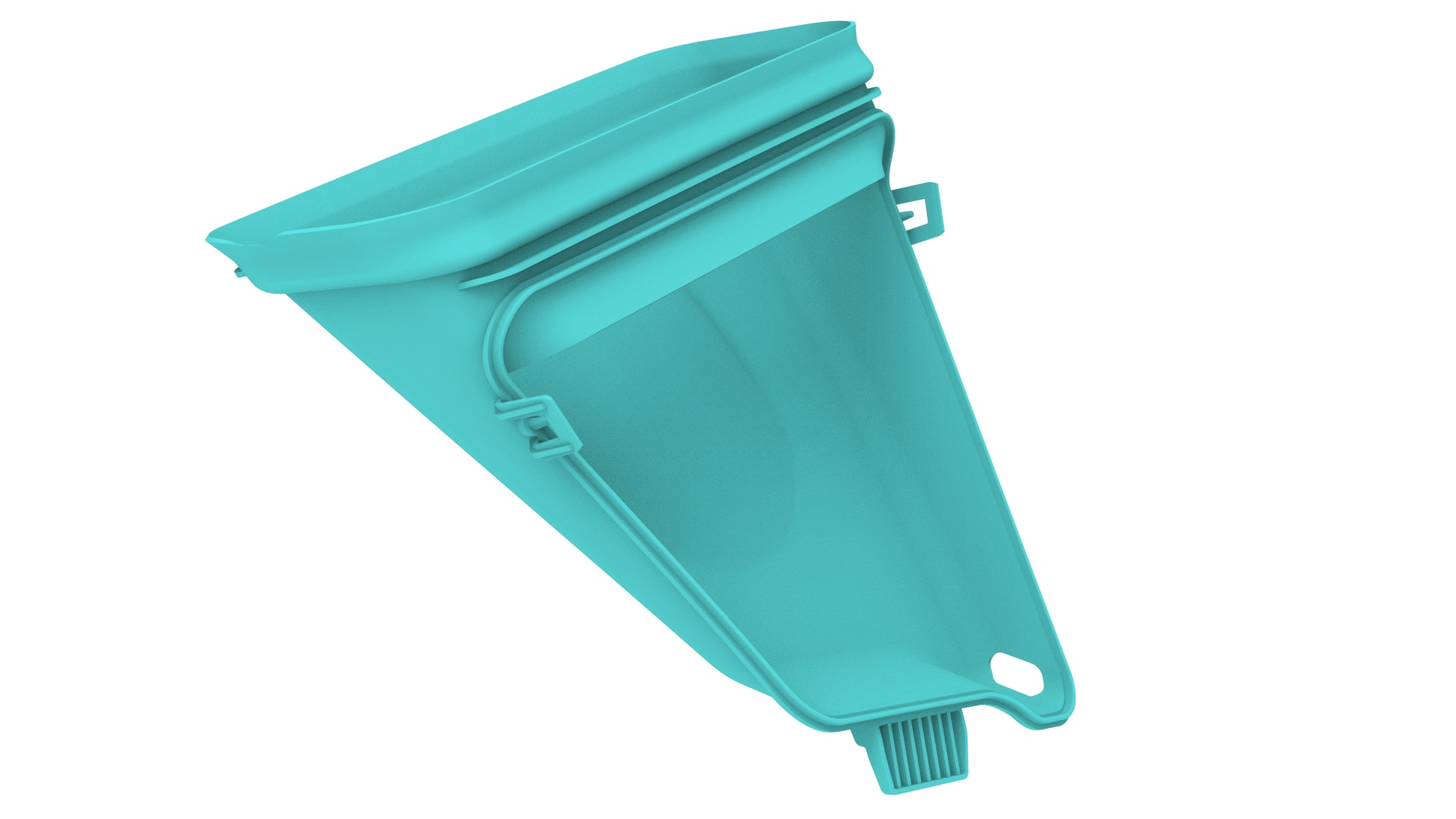

Duct - HVAC Plenum - Outer (Remove and Replace)

Correction code 1810910218109102

Remove

Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).

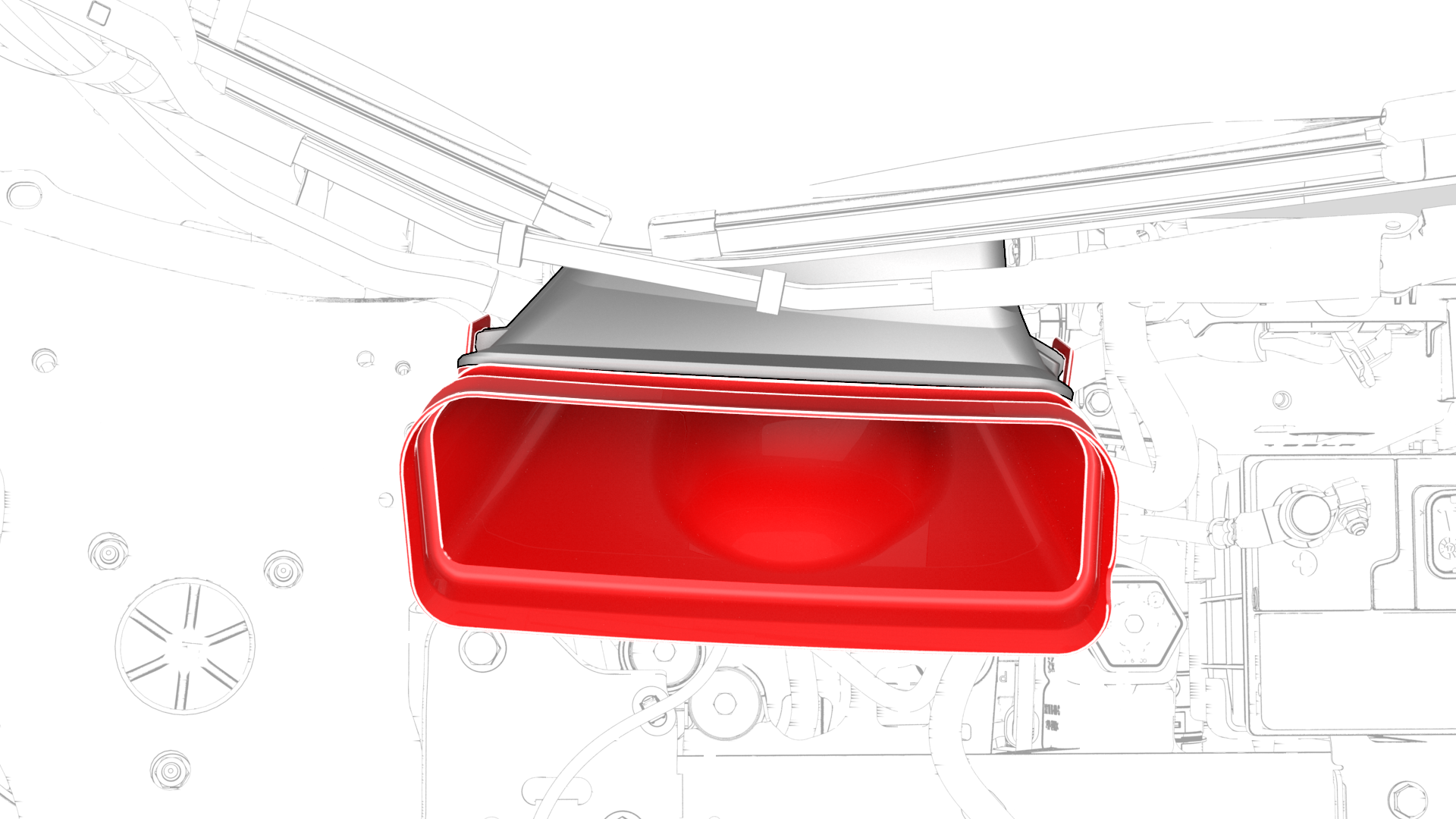

Release the clips that attach the outer HVAC plenum duct to the inner HVAC plenum duct, and then remove the outer HVAC plenum duct from the vehicle.

		1	Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
		2	Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
		3	Release the clips that attach the outer HVAC plenum duct to the inner HVAC plenum duct, and then remove the outer HVAC plenum duct from the vehicle.

Install

Installation procedure is the reverse of removal, except for the following:

Align the tab at the bottom of the outer HVAC plenum duct before attaching the clips.
