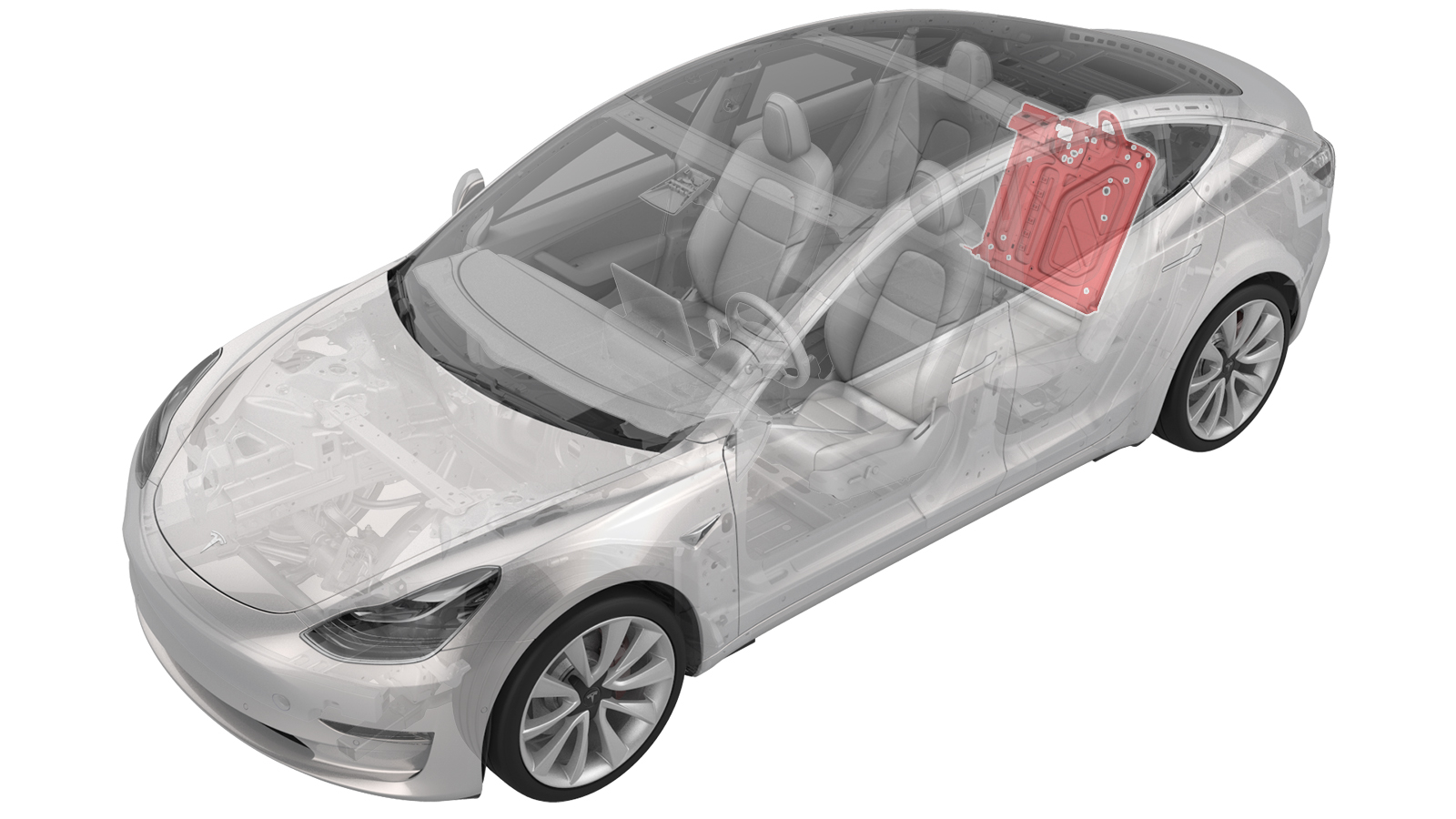

Frame - Seat Back - 2nd Row - LH (Remove and Replace)

Correction code 1305470213054702

Remove

Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
Remove the rear LH sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
Remove the LH 2nd row seat back pivot sleeve. See Pivot Sleeve - Seat Back - 2nd Row - LH (Remove and Replace).
Remove the LH 2nd row seat back hinge bracket. See Bracket - Hinge - Seat Back - 2nd Row - LH (Remove and Replace).
Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).
Remove the Center 2nd row headrest. See Headrest - 2nd Row - Center (Remove and Replace).
Remove the headrest guide locks.
Remove the 2nd row armrest closeout. See Closeout - Armrest - 2nd Row (Remove and Replace).
Remove the Center 2nd row seatbelt. See Seatbelt - 2nd Row - Center (Remove and Replace).
Remove the LH 2nd row seat back latch. See Latch - Seat Back - 2nd Row - LH (Remove and Replace).
Remove the LH 2nd row seat back handle. See Handle - Seat Back - 2nd Row - LH (Remove and Replace).

		1	Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
		2	Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
		3	Remove the rear LH sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
		4	Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
		5	Remove the LH 2nd row seat back pivot sleeve. See Pivot Sleeve - Seat Back - 2nd Row - LH (Remove and Replace).
		6	Remove the LH 2nd row seat back hinge bracket. See Bracket - Hinge - Seat Back - 2nd Row - LH (Remove and Replace).
		7	Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).
		8	Remove the Center 2nd row headrest. See Headrest - 2nd Row - Center (Remove and Replace).

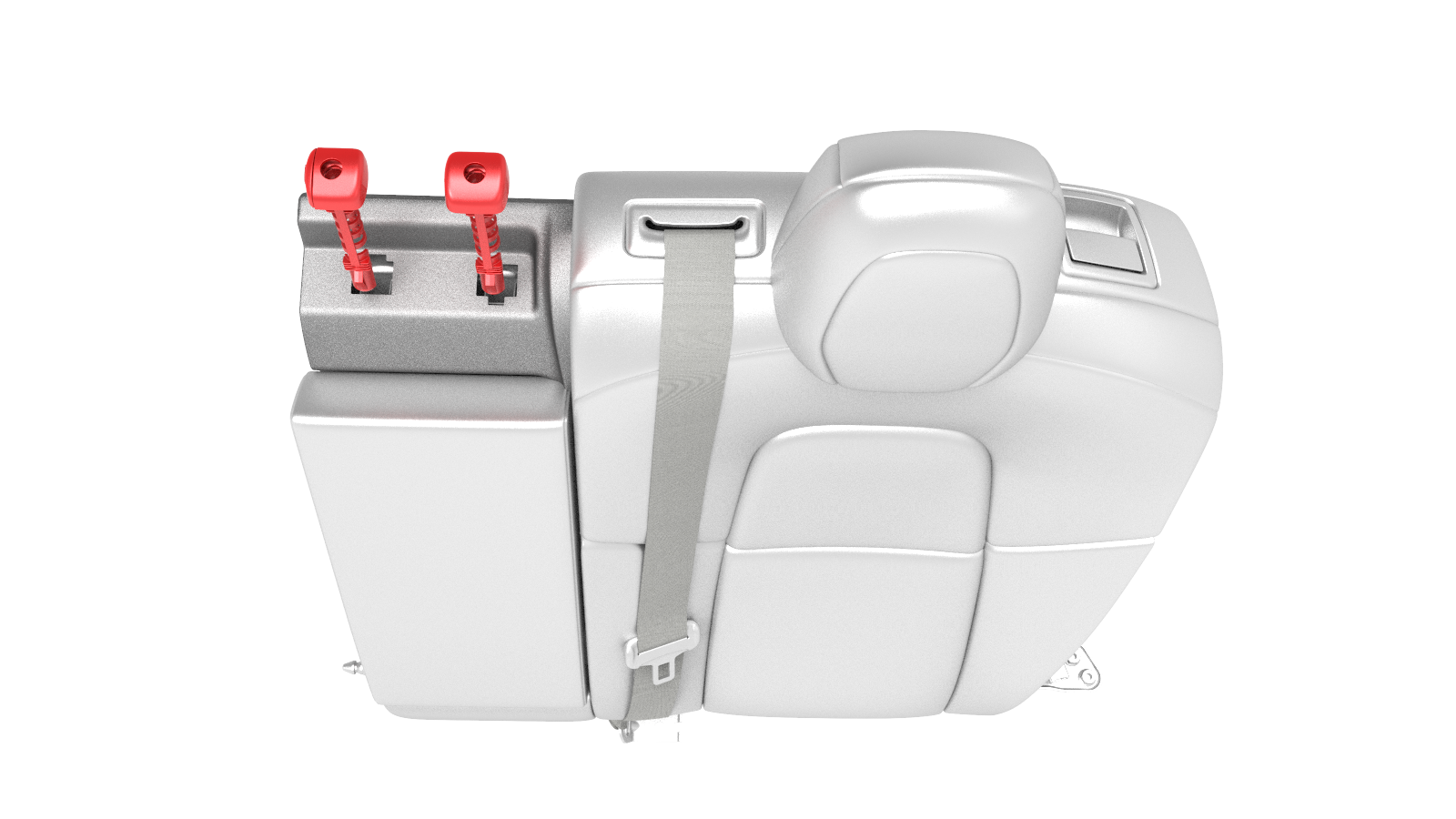

		9	Remove the headrest guide locks.
		10	Remove the 2nd row armrest closeout. See Closeout - Armrest - 2nd Row (Remove and Replace).
		11	Remove the Center 2nd row seatbelt. See Seatbelt - 2nd Row - Center (Remove and Replace).
		12	Remove the LH 2nd row seat back latch. See Latch - Seat Back - 2nd Row - LH (Remove and Replace).
		13	Remove the LH 2nd row seat back handle. See Handle - Seat Back - 2nd Row - LH (Remove and Replace).

Install

Installation procedure is the reverse of removal.
