Actuator - Bleed - LH (Remove and Replace)

Correction code 1810220218102202
Parent topic: 1810 - Cabin HVAC

Remove

  1. Remove the cross car beam. See Beam - Cross Car (Remove and Replace).

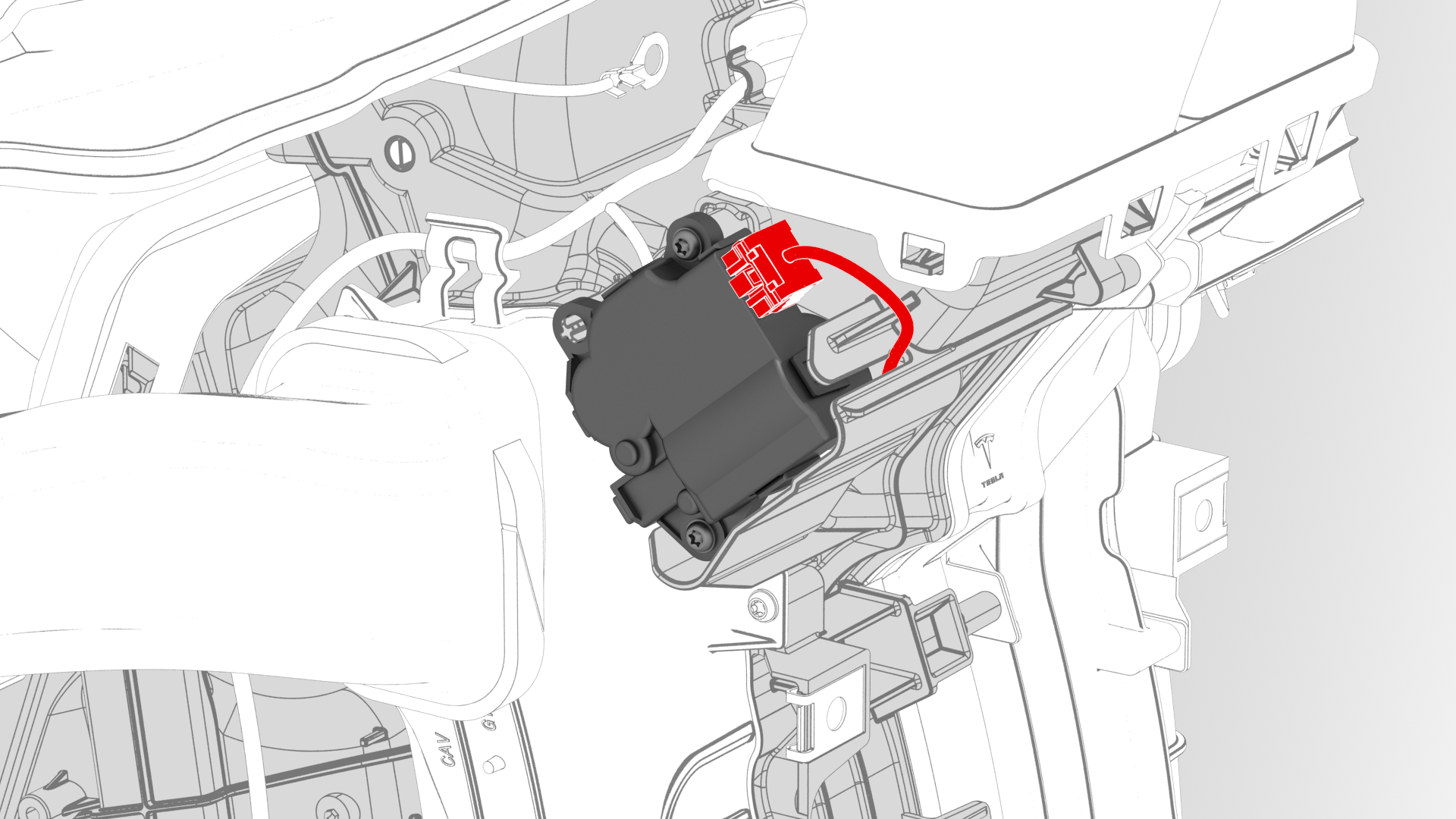

  2. Disconnect the electrical wiring harness connector from the LH bleed actuator.

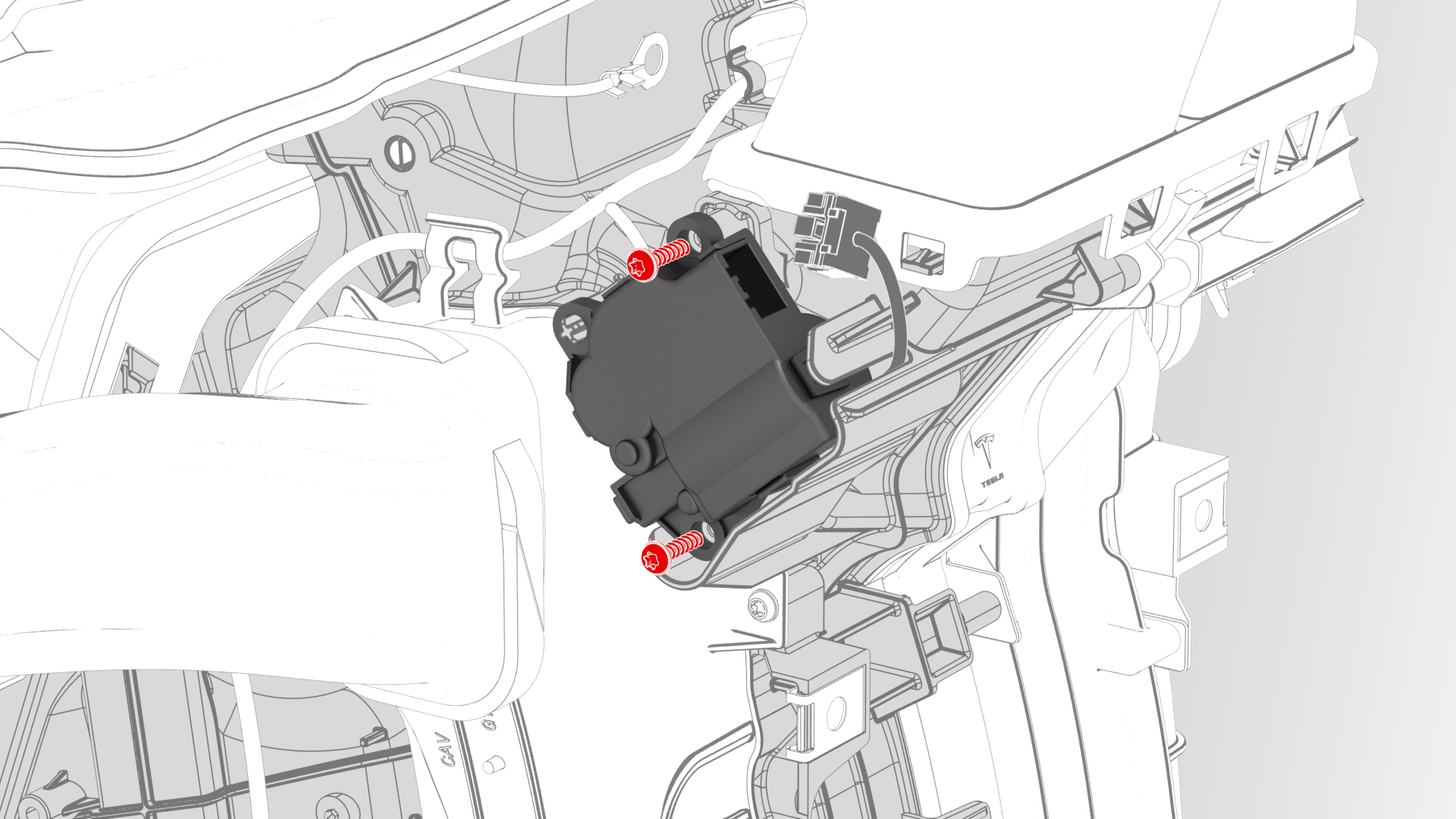

  3. Remove the bolts that attach the actuator to the HVAC module, and then remove the actuator from the module.

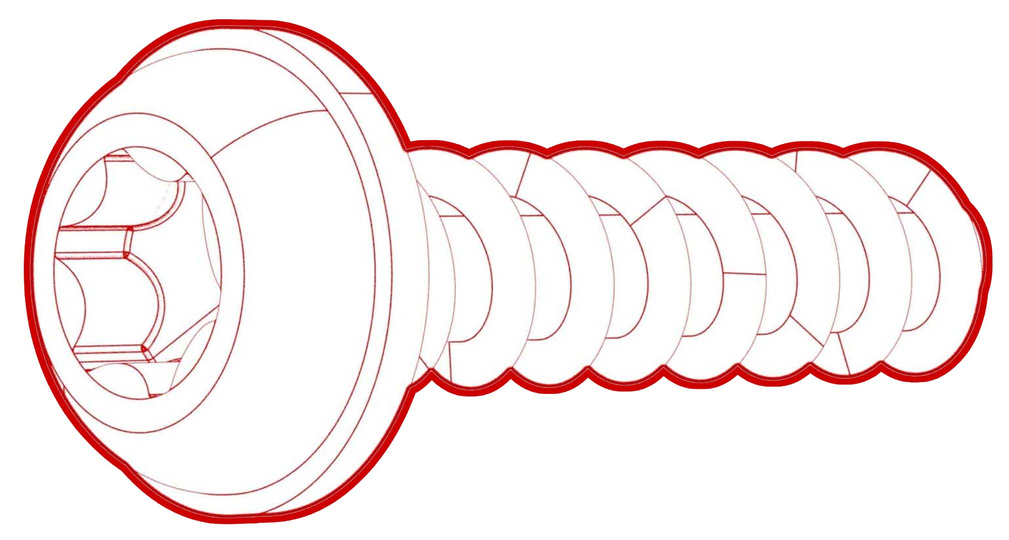

    Torque 2.3 Nm
1Remove the cross car beam. See Beam - Cross Car (Remove and Replace).
2Disconnect the electrical wiring harness connector from the LH bleed actuator.
3Remove the bolts that attach the actuator to the HVAC module, and then remove the actuator from the module.
Torque 2.3 Nm

Install

Installation procedure is the reverse of removal.
