Duct - Footwell - LH (Remove and Replace)

Correction code 1810860218108602

Remove

Remove the LH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace).
Disconnect 12V power. See 12V Power (Disconnect and Connect).
Remove the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).
Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install).

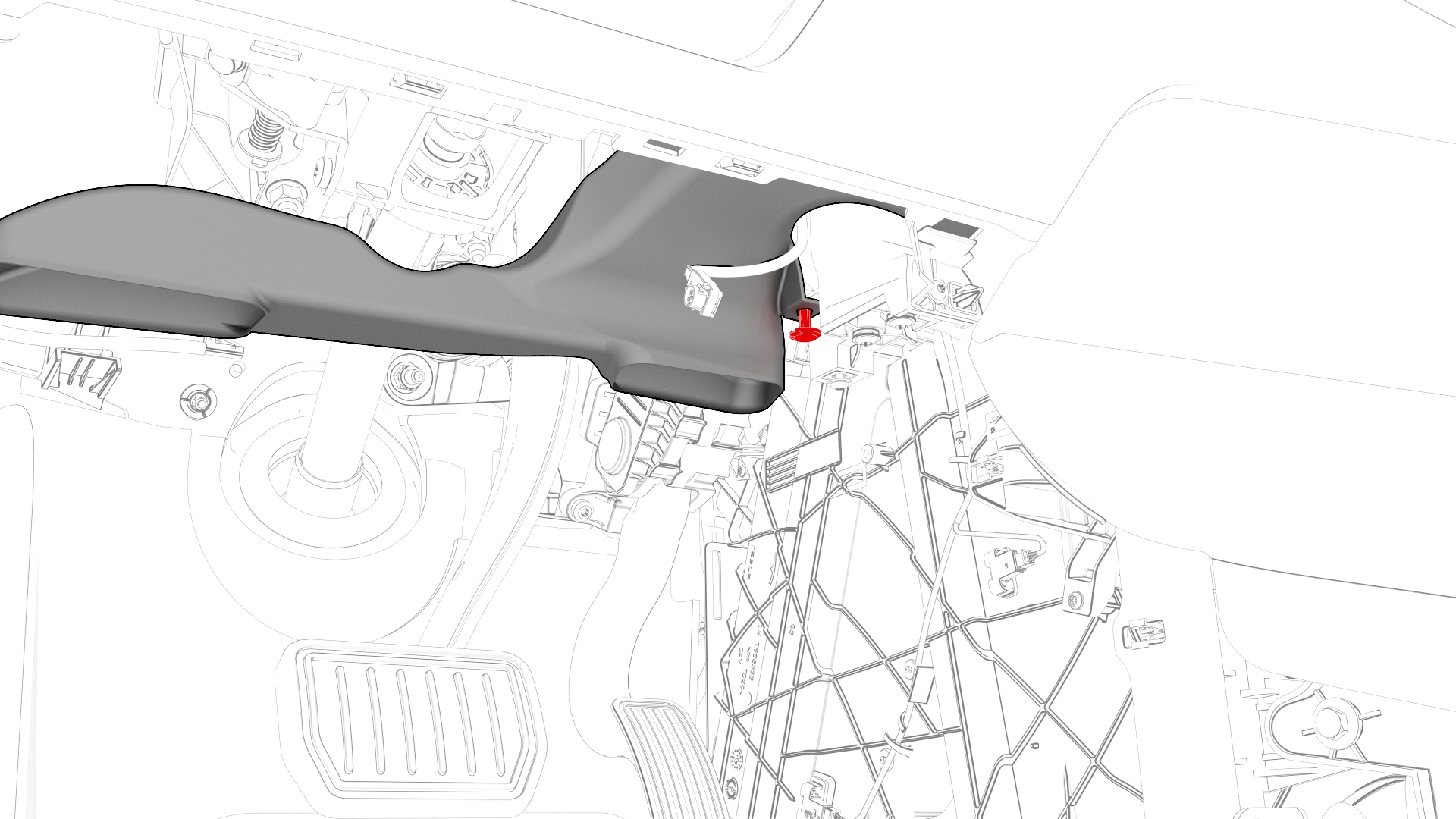

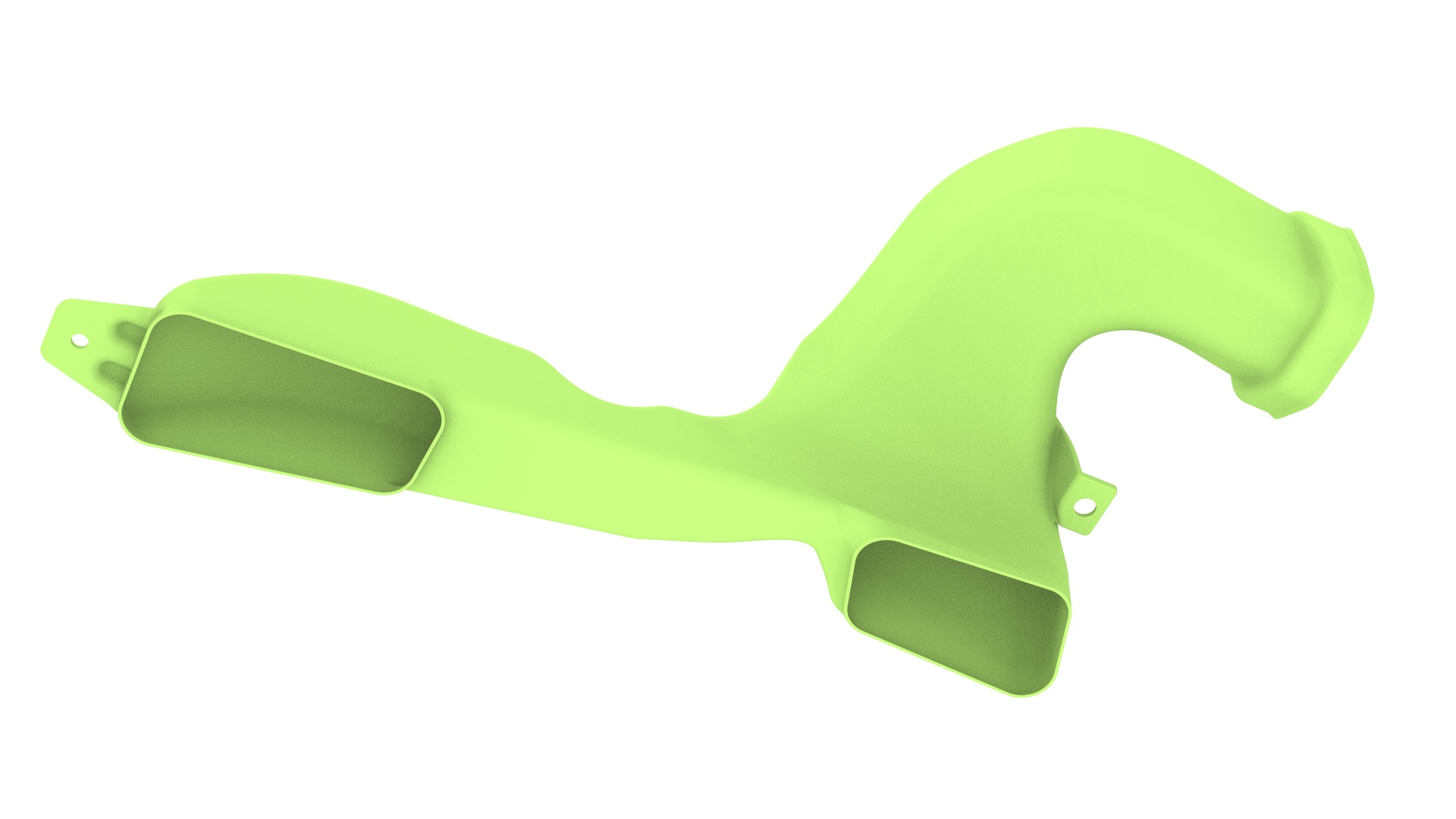

Release the clip that attaches the LH footwell duct to the HVAC module, and remove the LH footwell duct.

		1	Remove the LH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace).
		2	Disconnect 12V power. See 12V Power (Disconnect and Connect).
		3	Remove the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).
		4	Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install).
		5	Release the clip that attaches the LH footwell duct to the HVAC module, and remove the LH footwell duct.

Install

Installation procedure is the reverse of removal.
