Charge Port - Manual Release of Cable

Correction code 4401320544013205

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 4401 - Charge System Inlet

Procedure

  1. Ensure the vehicle is not actively charging.
    Warning: Do not perform this procedure while the vehicle is charging.
  2. Open the trunk.

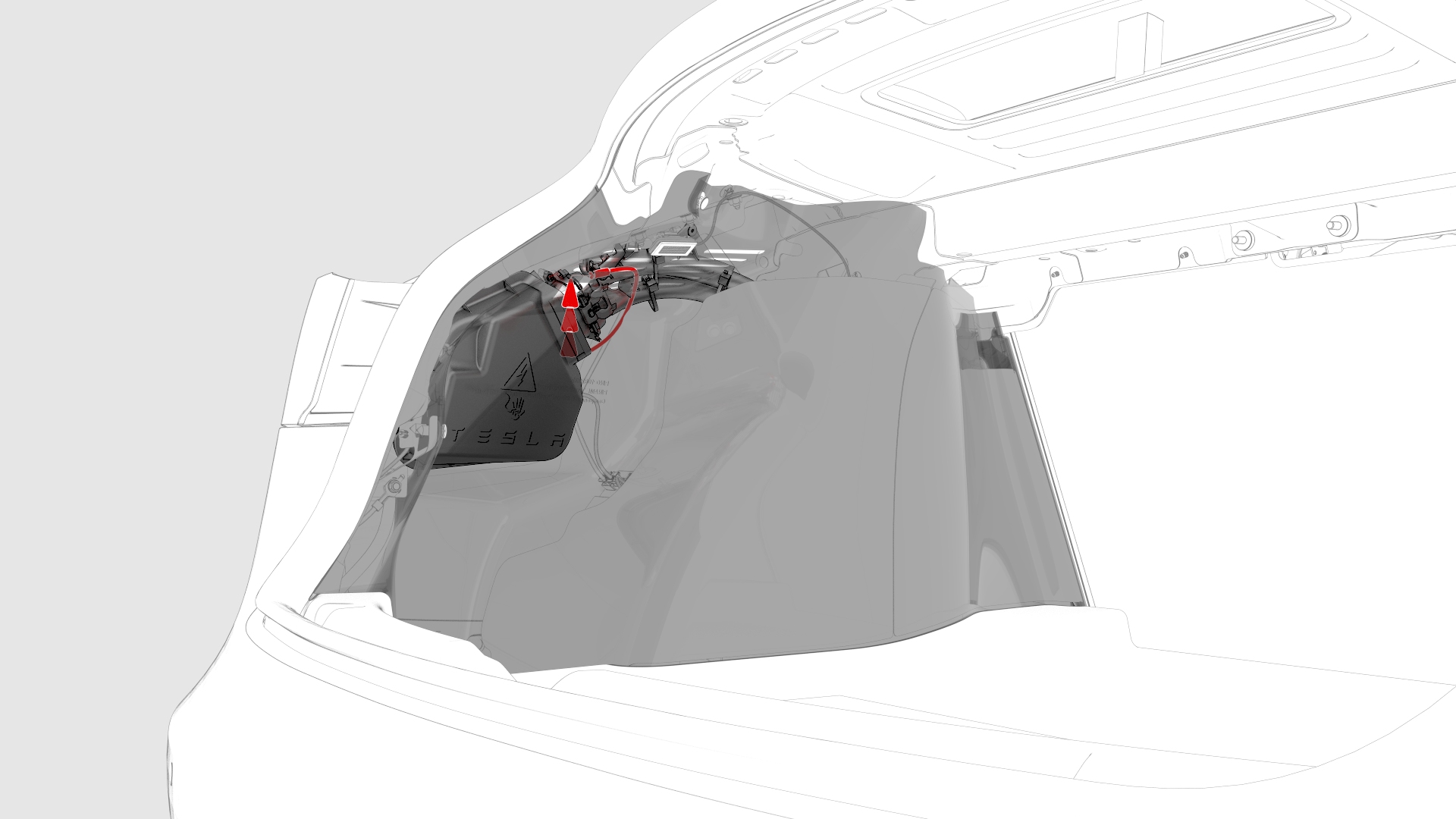

  3. Pull the tag down through the LH trunk wall opening to release the charging cable from the charge port.
  4. Remove the charging cable from the charge port.
    Warning: Do not attempt to remove the charge cable while simultaneously pulling the release cable. Always pull the release cable before attempting to remove the charge cable from the charge port.
  5. Close the trunk.
1Ensure the vehicle is not actively charging.
Warning: Do not perform this procedure while the vehicle is charging.
2Open the trunk.
3Pull the tag down through the LH trunk wall opening to release the charging cable from the charge port.
4Remove the charging cable from the charge port.
Warning: Do not attempt to remove the charge cable while simultaneously pulling the release cable. Always pull the release cable before attempting to remove the charge cable from the charge port.
5Close the trunk.
