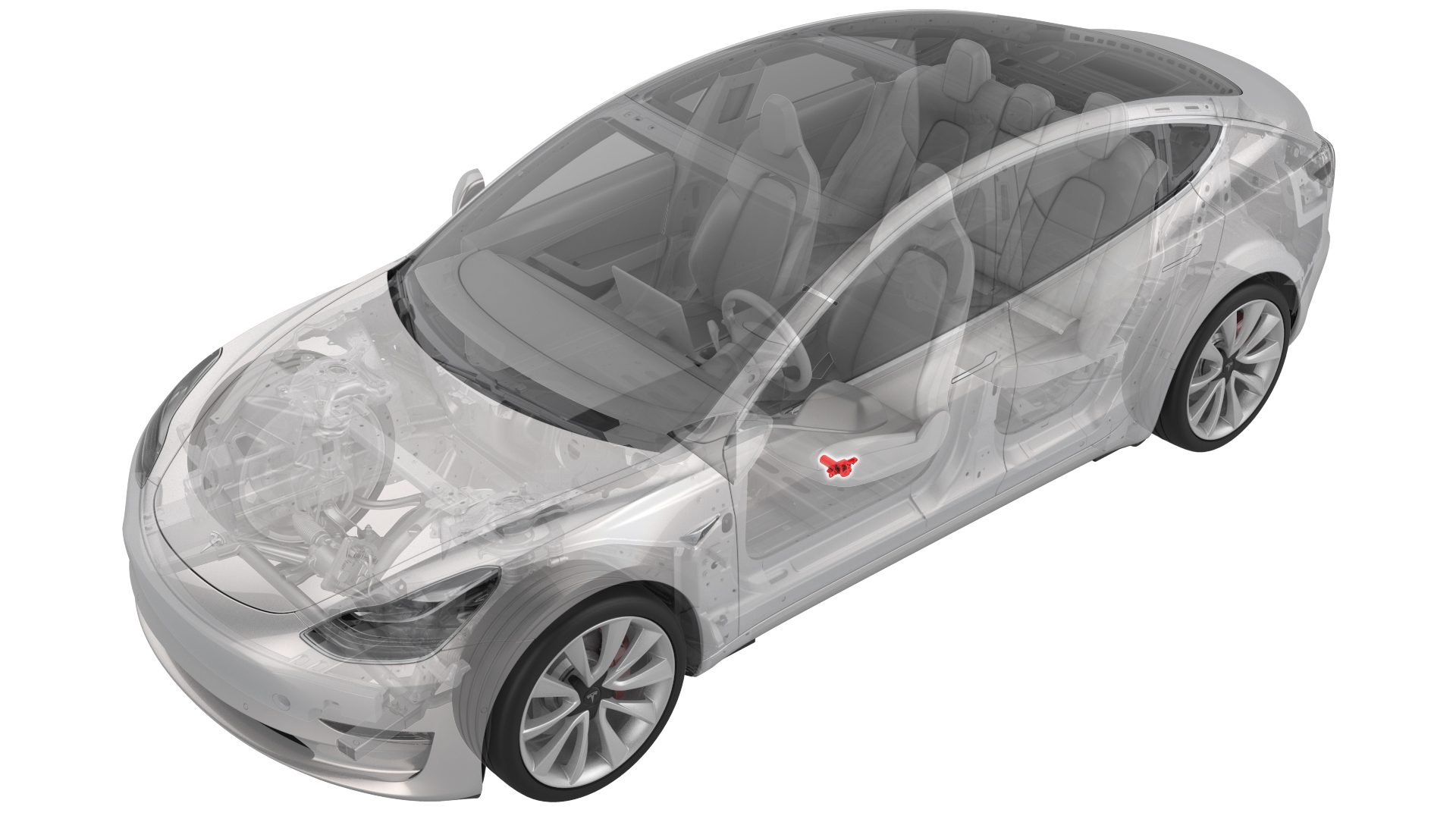

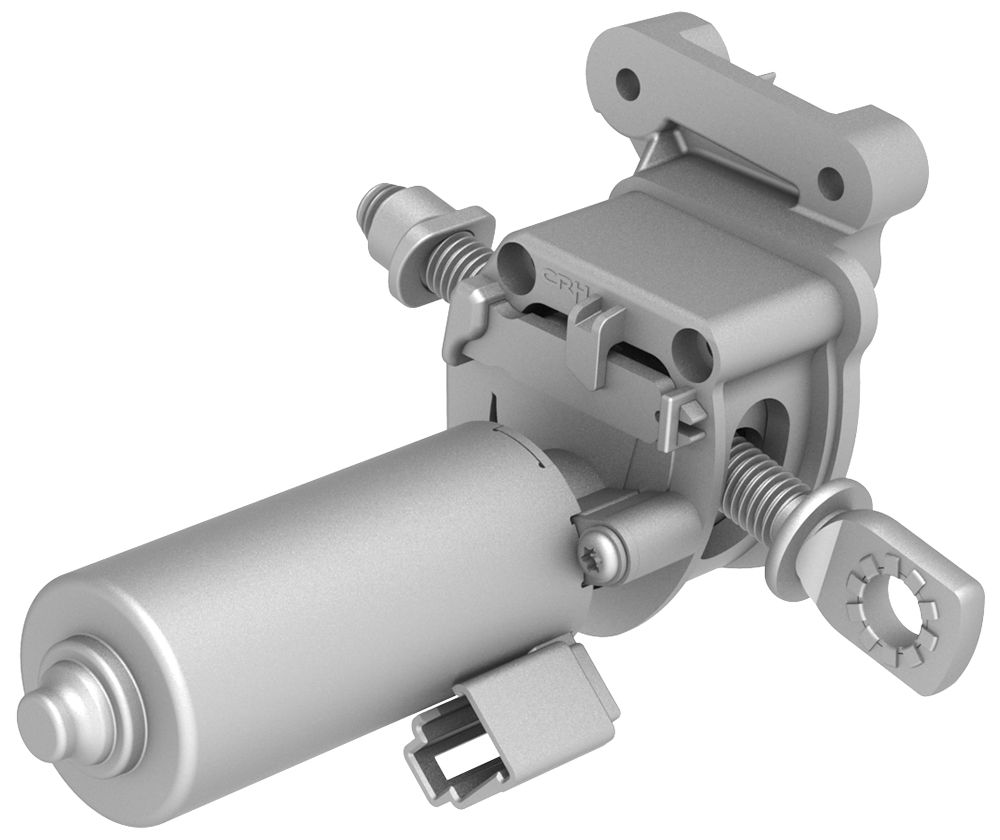

Motor - Seat Tilt - Driver Seat (Remove and Replace)

Correction code 1301150213011502
Parent topic: 1301 - Front Seat Tracks and Motors

Remove

  1. Remove the driver seat. See Seat - Driver (Remove and Replace).
  2. Remove the driver seat outer side cover. See Cover - Outer Side - Driver Seat (Remove and Install).
  3. Disconnect the electrical harness from the driver seat tilt motor connector.

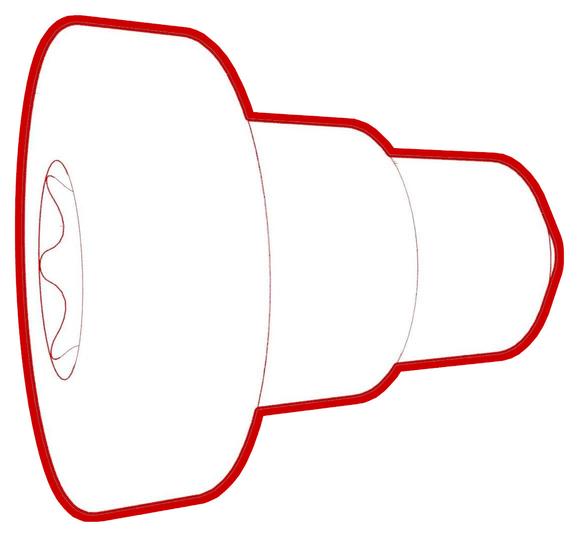

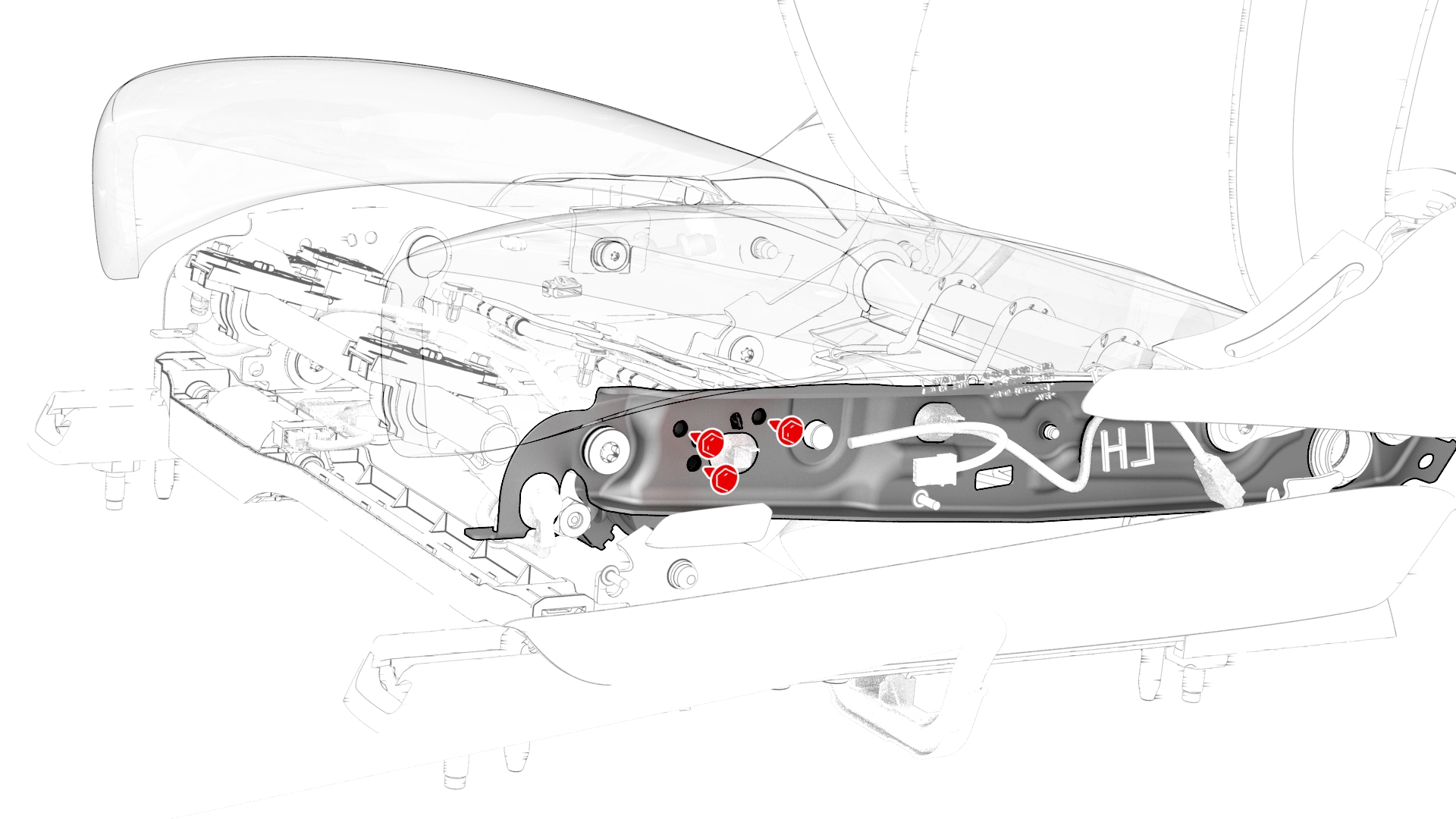

  4. Remove the bolts that attach the motor to the seat frame.
    Torque 7.5 Nm

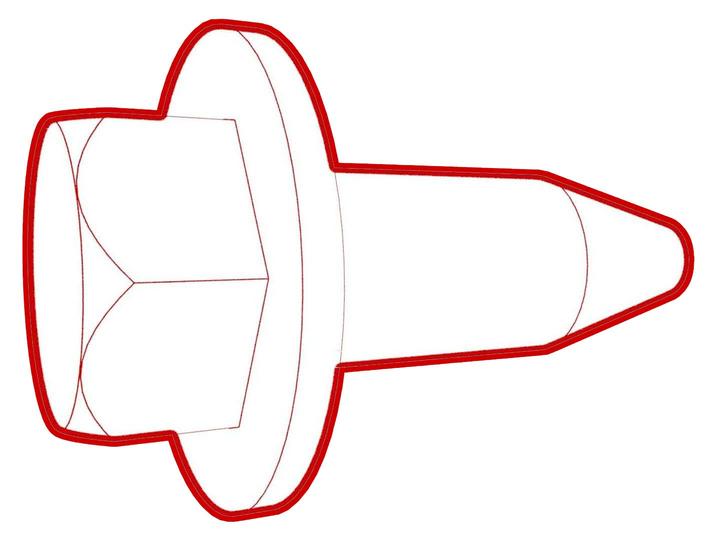

  5. Remove the bolt that attaches the motor adjustment arm to the seat cushion tilt tube bracket, and then remove the seat tilt motor from the seat frame..
    Torque 16 Nm
1Remove the driver seat. See Seat - Driver (Remove and Replace).
2Remove the driver seat outer side cover. See Cover - Outer Side - Driver Seat (Remove and Install).
3Disconnect the electrical harness from the driver seat tilt motor connector.
4Remove the bolts that attach the motor to the seat frame.
Torque 7.5 Nm
5Remove the bolt that attaches the motor adjustment arm to the seat cushion tilt tube bracket, and then remove the seat tilt motor from the seat frame..
Torque 16 Nm

Install

Installation procedure is the reverse of removal.
