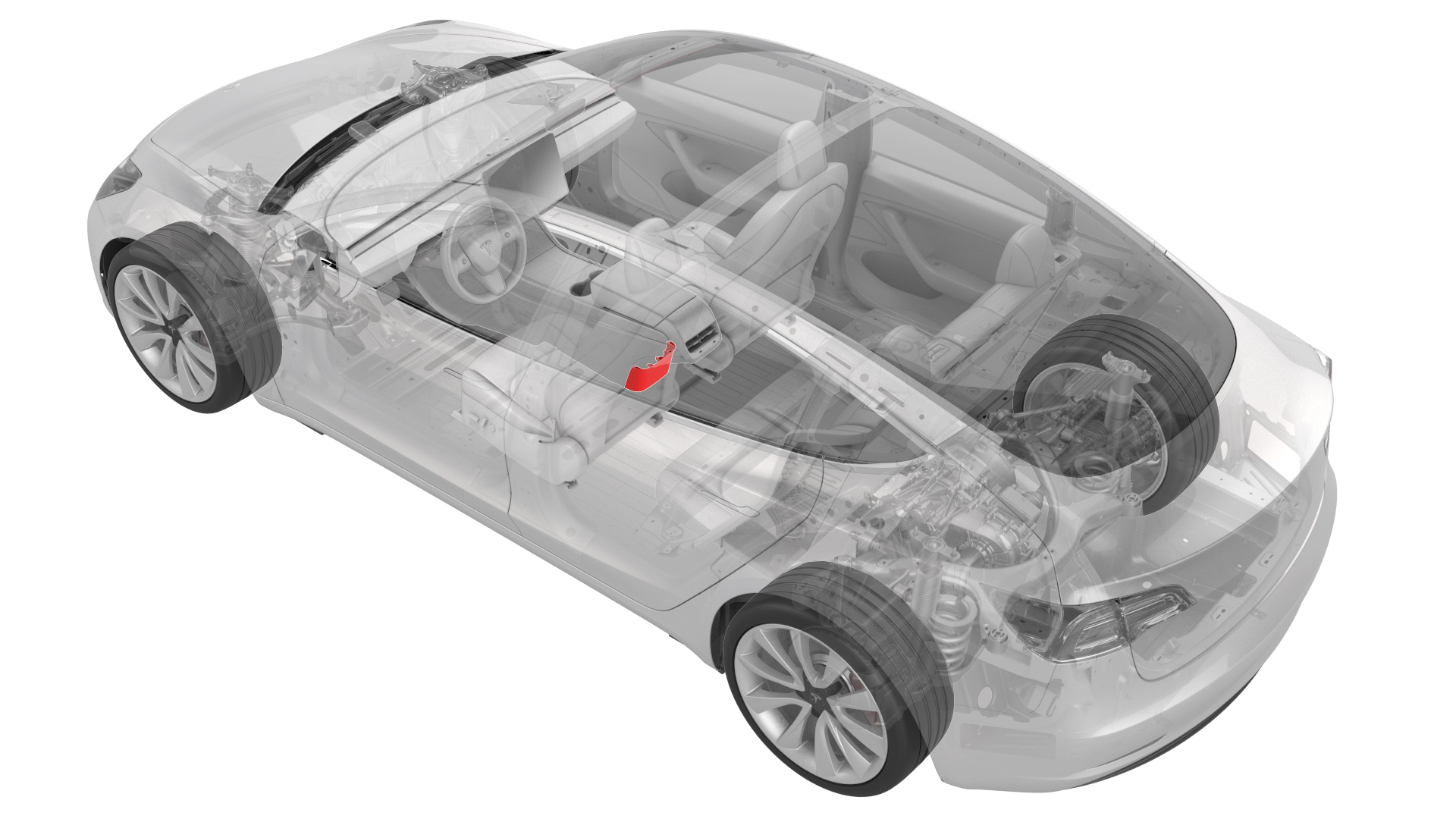

Panel - Lower Rear - Center Console (Remove and Replace)

Correction code 1519520215195202

Remove

Move the driver seat and front passenger seat fully forward.

Note: Notice the location of the driver seat and front passenger seat prior to moving them forward to help restore the seats back into their original position.

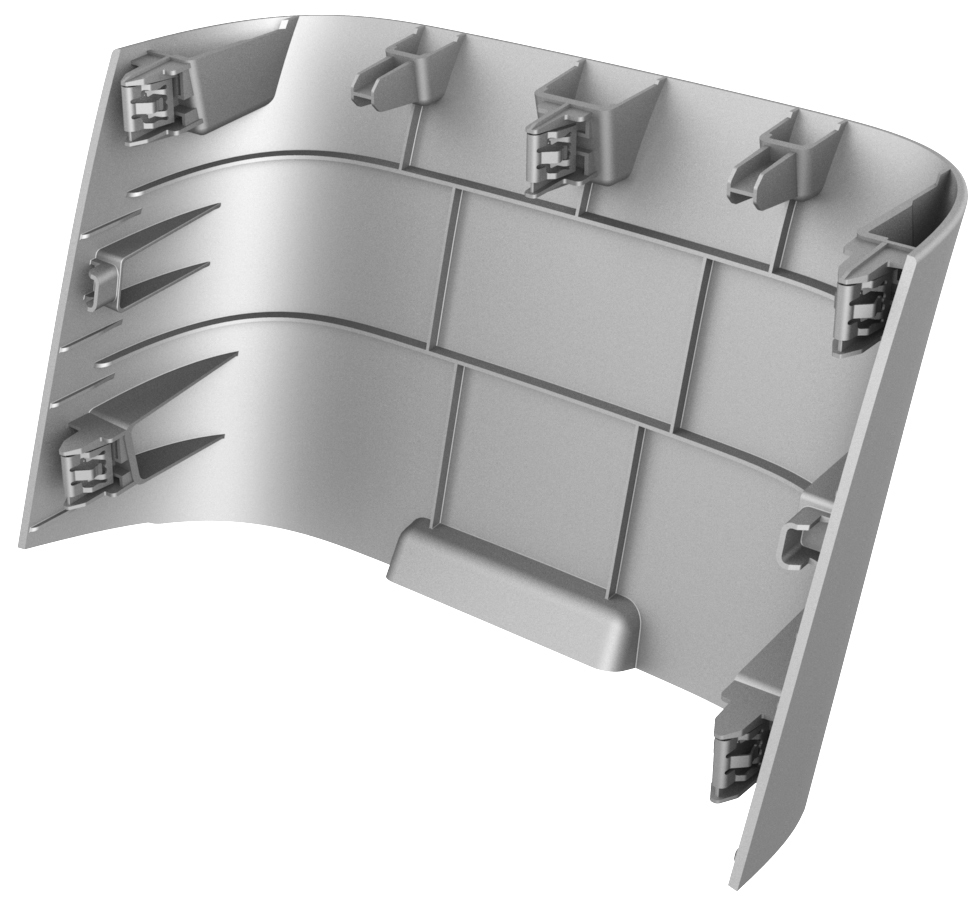

Release the clips that attach the center console lower rear panel to the center console, and then remove the panel from the vehicle.

Note: Insert the plastic trim tool at the bottom of the center console lower rear panel, and then pull panel straight out to release it.

		1	Move the driver seat and front passenger seat fully forward. Note: Notice the location of the driver seat and front passenger seat prior to moving them forward to help restore the seats back into their original position.
		2	Release the clips that attach the center console lower rear panel to the center console, and then remove the panel from the vehicle. Note: Insert the plastic trim tool at the bottom of the center console lower rear panel, and then pull panel straight out to release it.

Install

Installation procedure is the reverse of removal.
