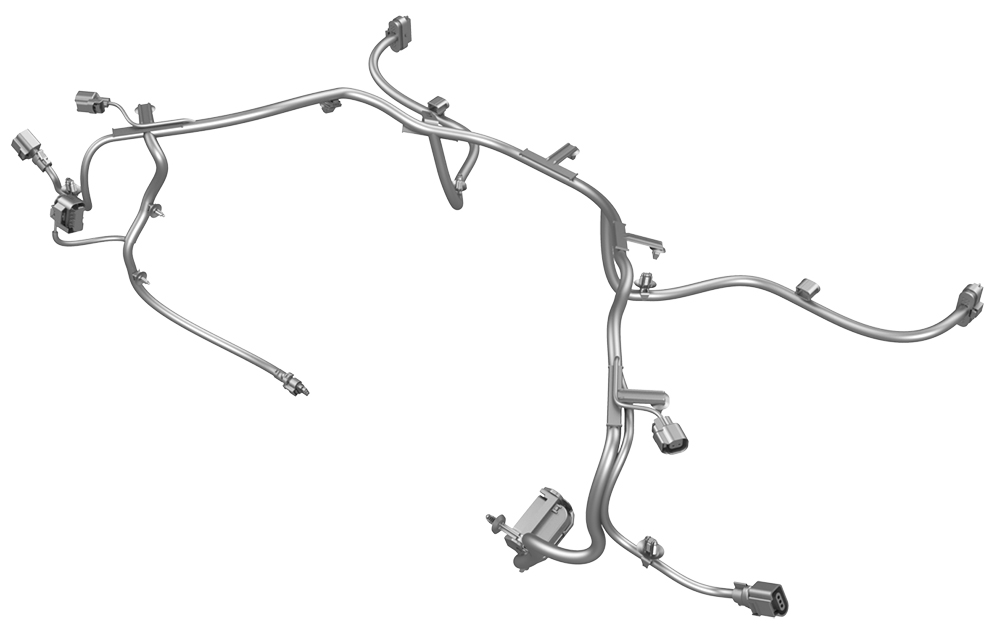

Harness - Subframe - Rear (Remove and Replace)

Correction code 1710200217102002
Parent topic: 1710 - Harnesses

Remove

  1. Remove the rear subframe. See Subframe Assembly - Rear (Remove and Install).
  2. Disconnect the electrical connector from the oil pump.
  3. Release the clips that attach the electrical harness to the rear drive unit.
  4. Disconnect the resolver electrical connector.
  5. Release the clip that attaches the RH rear ABS wheel speed sensor connector to the subframe, and then disconnect the connector from the rear subframe harness.
    Tip: Use a mechanical pickup tool to hold the connector in place, and then release the connector clip with a screwdriver.
  6. Disconnect the 12V electrical connector from the rear drive unit.

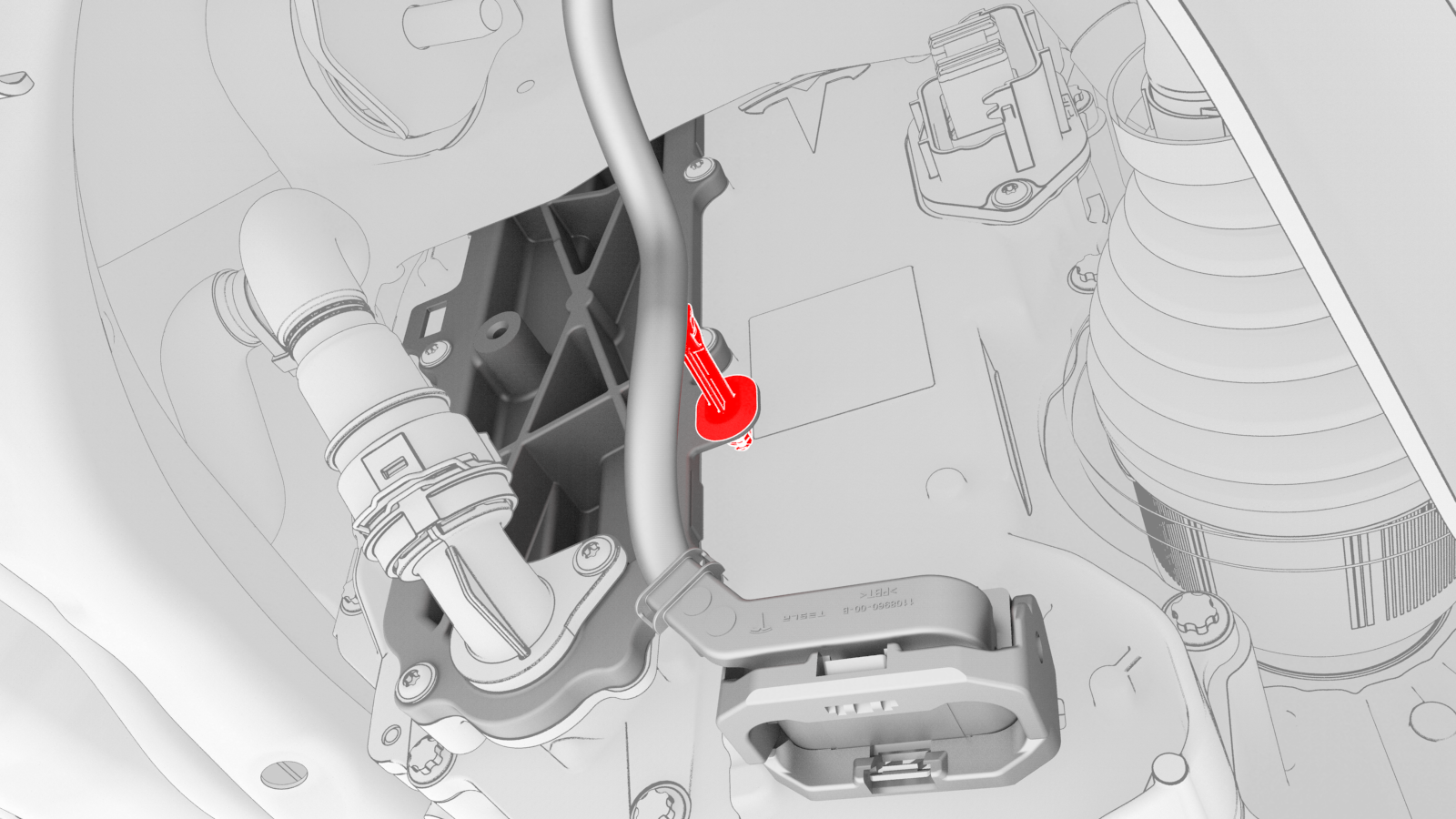

  7. Release the clip that attaches the rear drive unit electrical harness to the rear subframe at the lower LH side of the rear drive unit.
  8. Release the clip that attaches the LH rear ABS wheel speed sensor connector to the subframe, and then disconnect the connector from the rear subframe harness.
    Tip: Use a mechanical pickup tool to hold the connector in place, and then release the connector clip with a screwdriver.
  9. Release the clips that attach the subframe electrical harness to the bottom and top of the rear subframe, and then remove the electrical harness from the rear subframe.
    Top view of the rear subframe
    Bottom view of the rear subframe
1Remove the rear subframe. See Subframe Assembly - Rear (Remove and Install).
2Disconnect the electrical connector from the oil pump.
3Release the clips that attach the electrical harness to the rear drive unit.
4Disconnect the resolver electrical connector.
5Release the clip that attaches the RH rear ABS wheel speed sensor connector to the subframe, and then disconnect the connector from the rear subframe harness.
Tip: Use a mechanical pickup tool to hold the connector in place, and then release the connector clip with a screwdriver.
6Disconnect the 12V electrical connector from the rear drive unit.
7Release the clip that attaches the rear drive unit electrical harness to the rear subframe at the lower LH side of the rear drive unit.
8Release the clip that attaches the LH rear ABS wheel speed sensor connector to the subframe, and then disconnect the connector from the rear subframe harness.
Tip: Use a mechanical pickup tool to hold the connector in place, and then release the connector clip with a screwdriver.
Top view of the rear subframe
Bottom view of the rear subframe
9Release the clips that attach the subframe electrical harness to the bottom and top of the rear subframe, and then remove the electrical harness from the rear subframe.

Install

Installation procedure is the reverse of removal.
