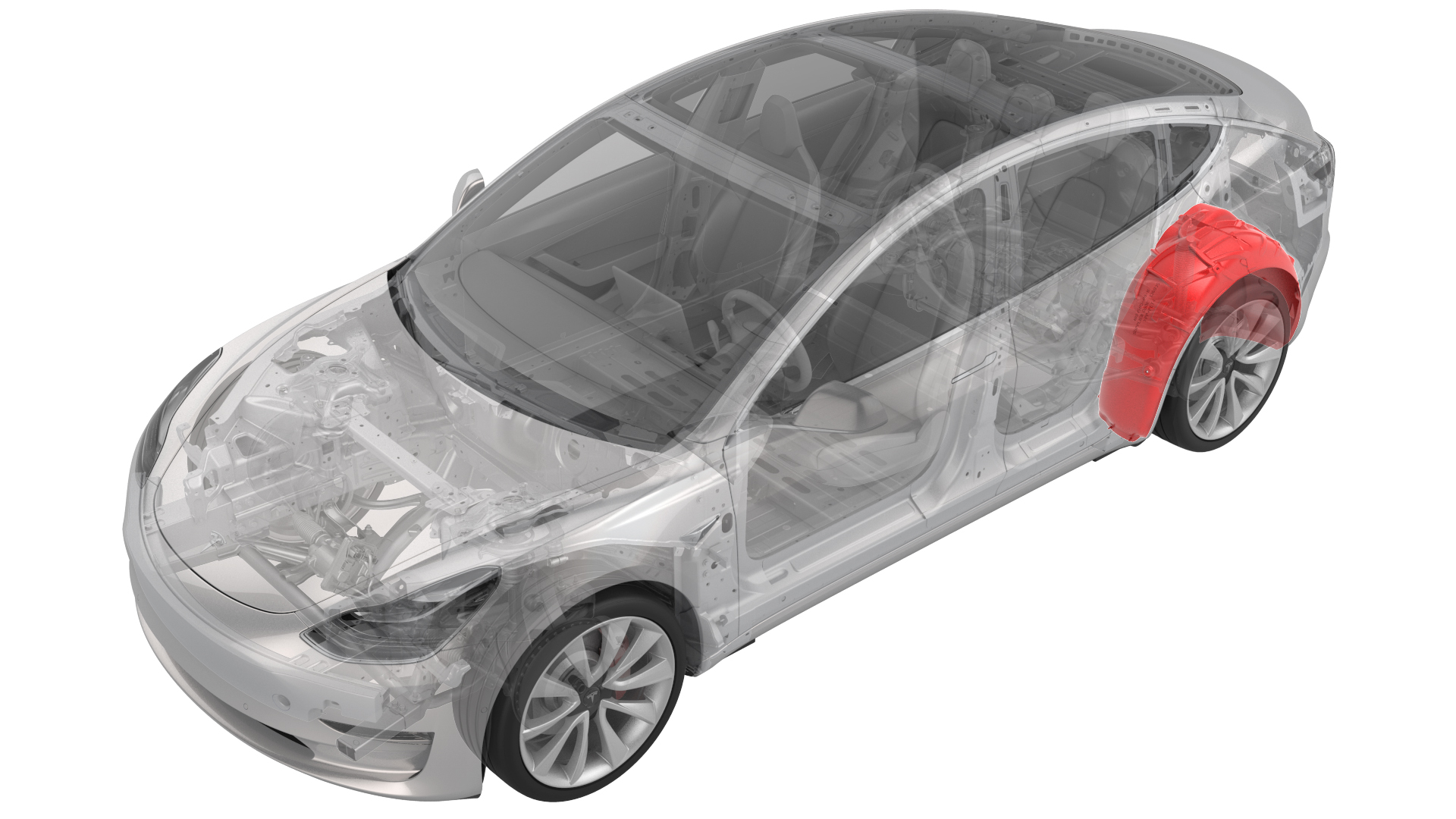

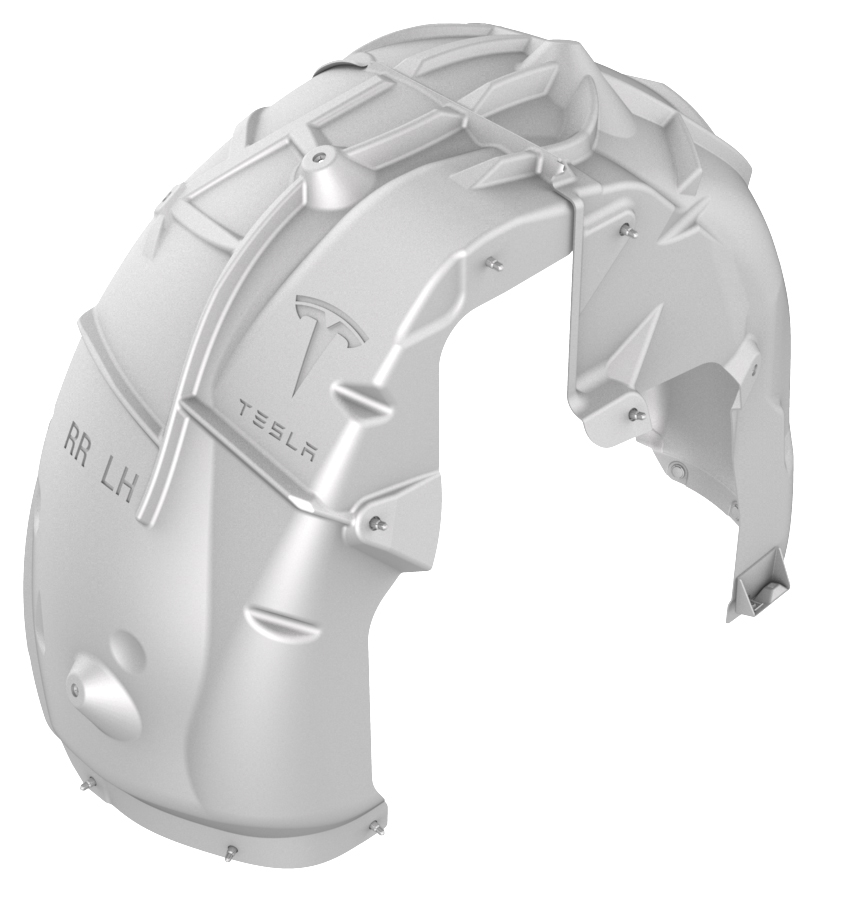

Wheel Arch Liner - Rear - LH (Remove and Replace)

Correction code 1201110212011102

1133569-00-APliers, Clip Removal

SPECIAL TOOLS

Pliers, Clip Removal (1133569-00-A)

Remove

Remove the LH rear wheel. See Wheel (Remove and Install).

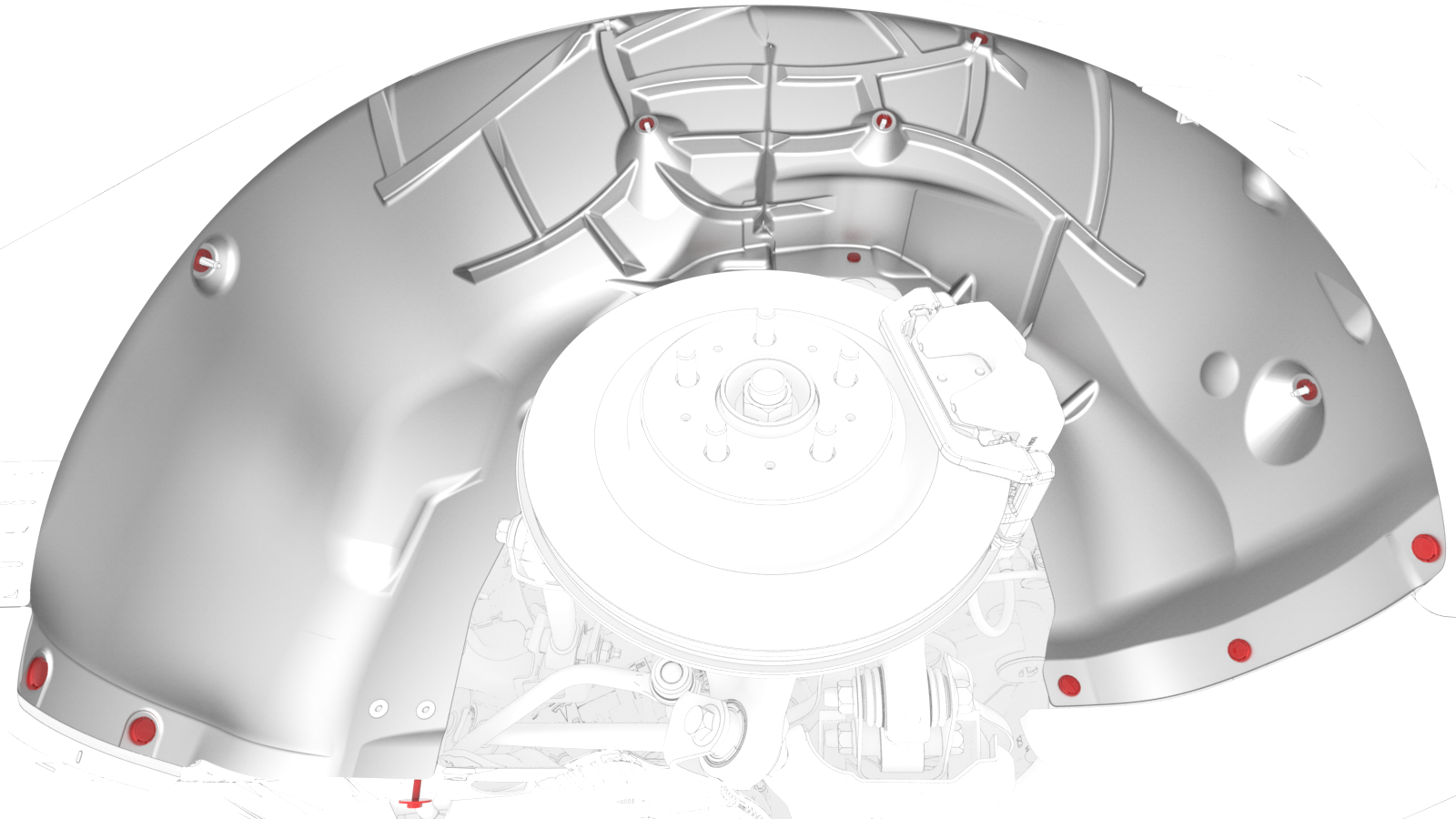

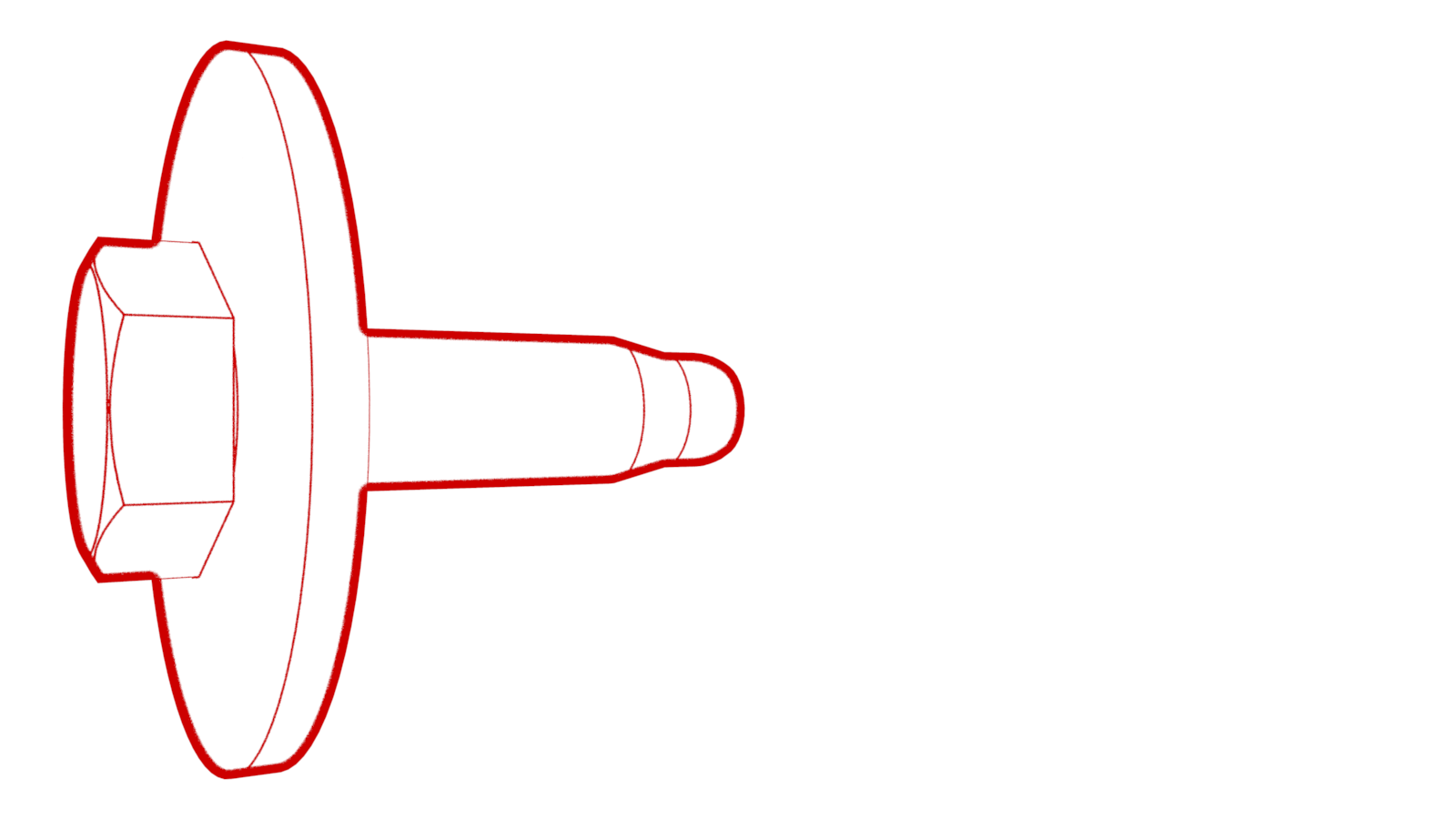

Remove the bolt and release the clips (x16) that attach the LH rear wheel arch liner to the vehicle, and then remove the liner from the vehicle
Torque 5 Nm

		1	Remove the LH rear wheel. See Wheel (Remove and Install).
		2	Remove the bolt and release the clips (x16) that attach the LH rear wheel arch liner to the vehicle, and then remove the liner from the vehicle Torque 5 Nm

Install

Installation procedure is the reverse of removal.
