Sensor - Radar - Front (Remove and Replace)

Correction code 1720150217201502

Remove

Remove the front fascia. See Fascia - Front (Remove and Install).

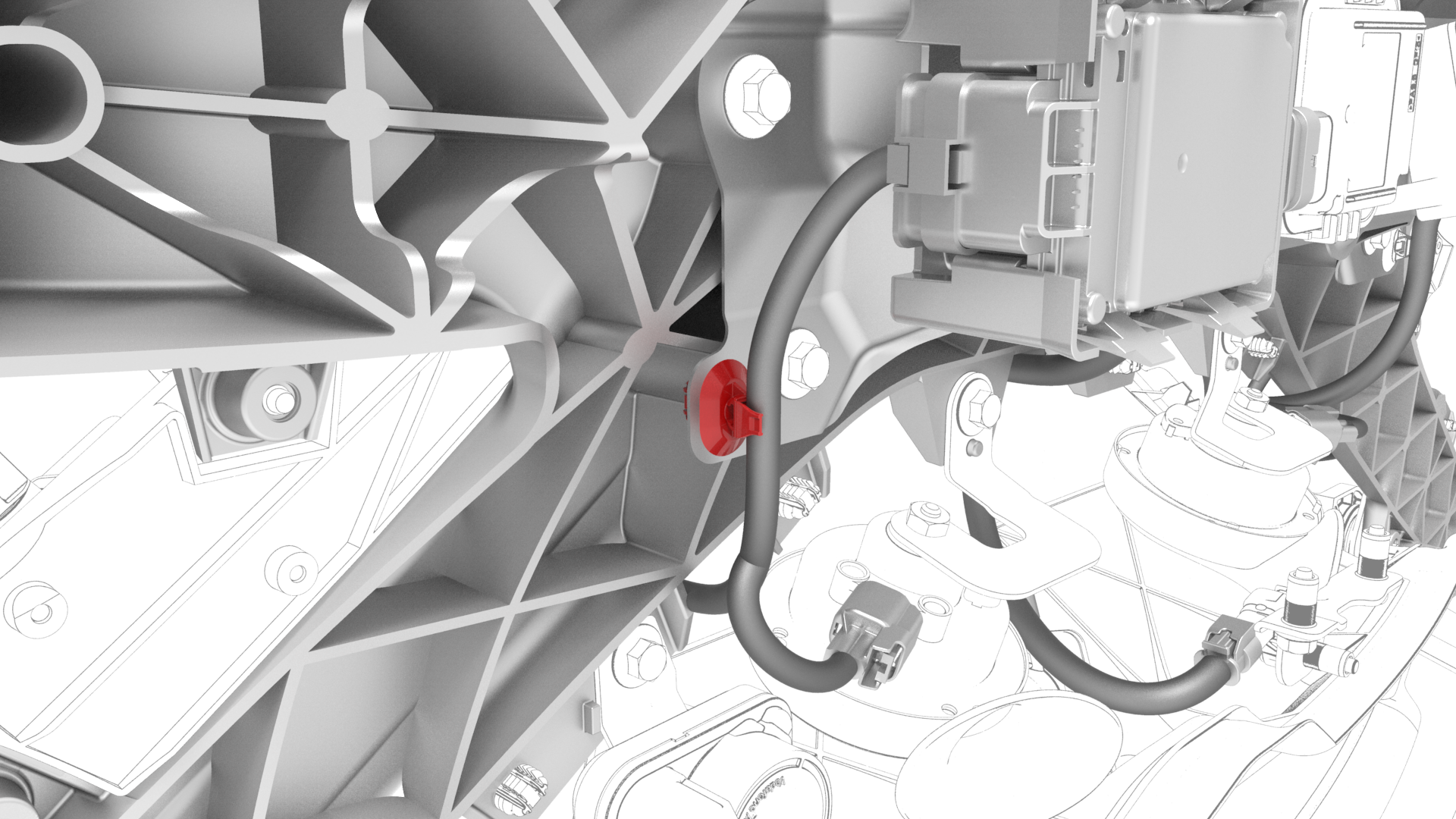

Release the clip that attaches the front radar sensor wiring harness to the front end carrier.

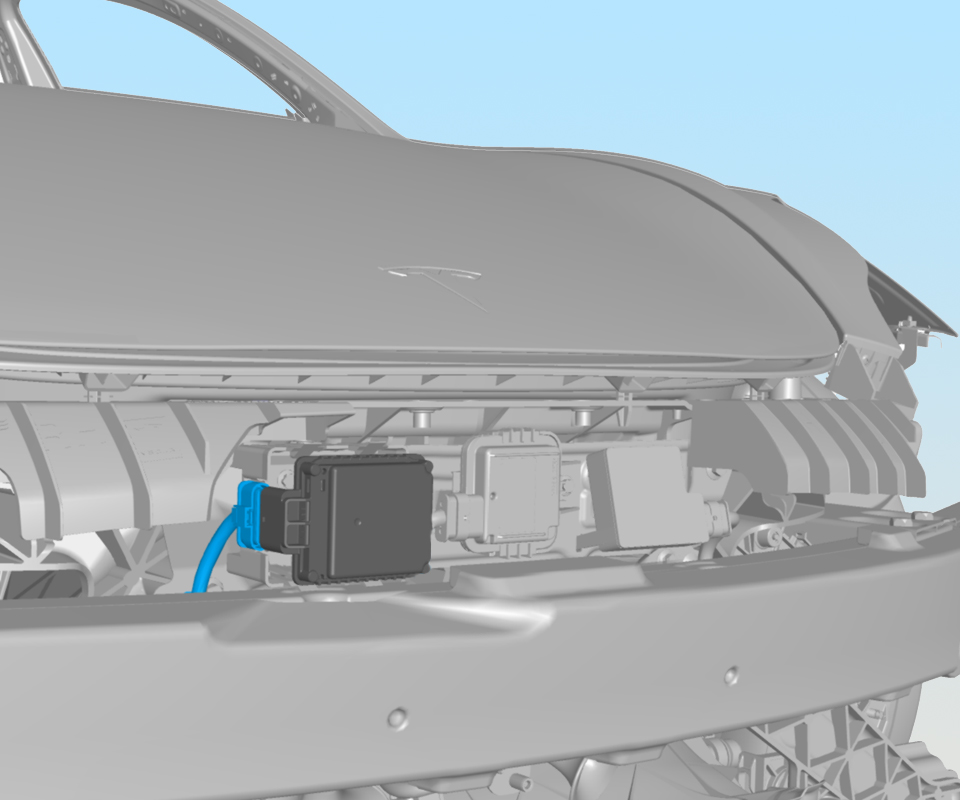

Disconnect the electrical harness connector from the radar sensor.

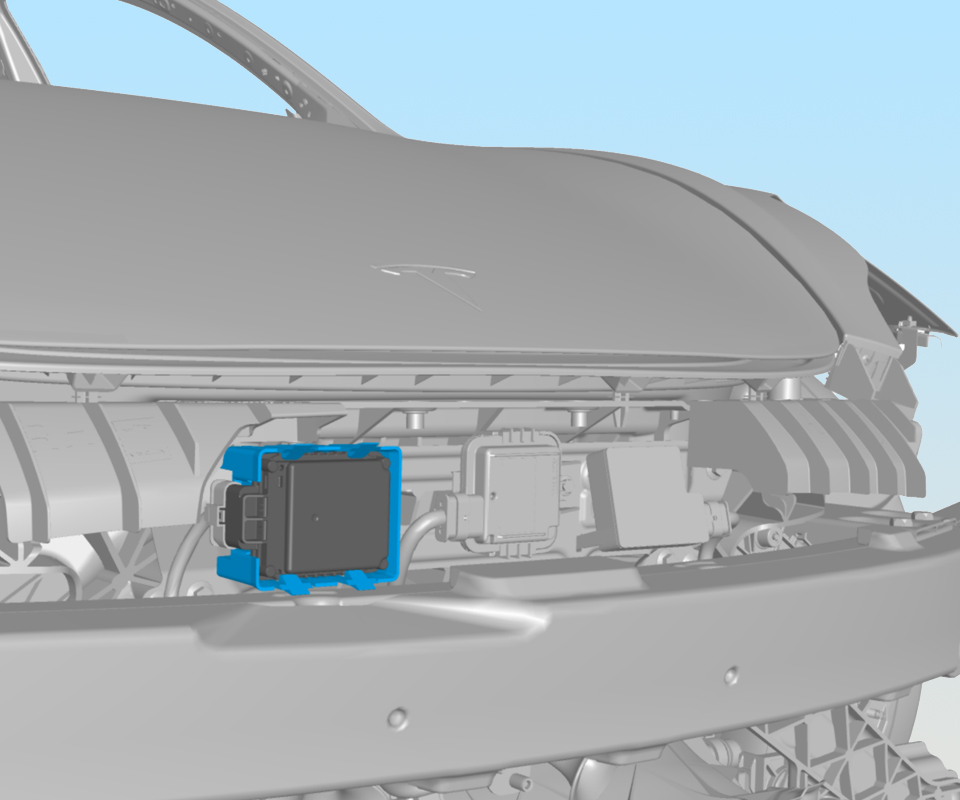

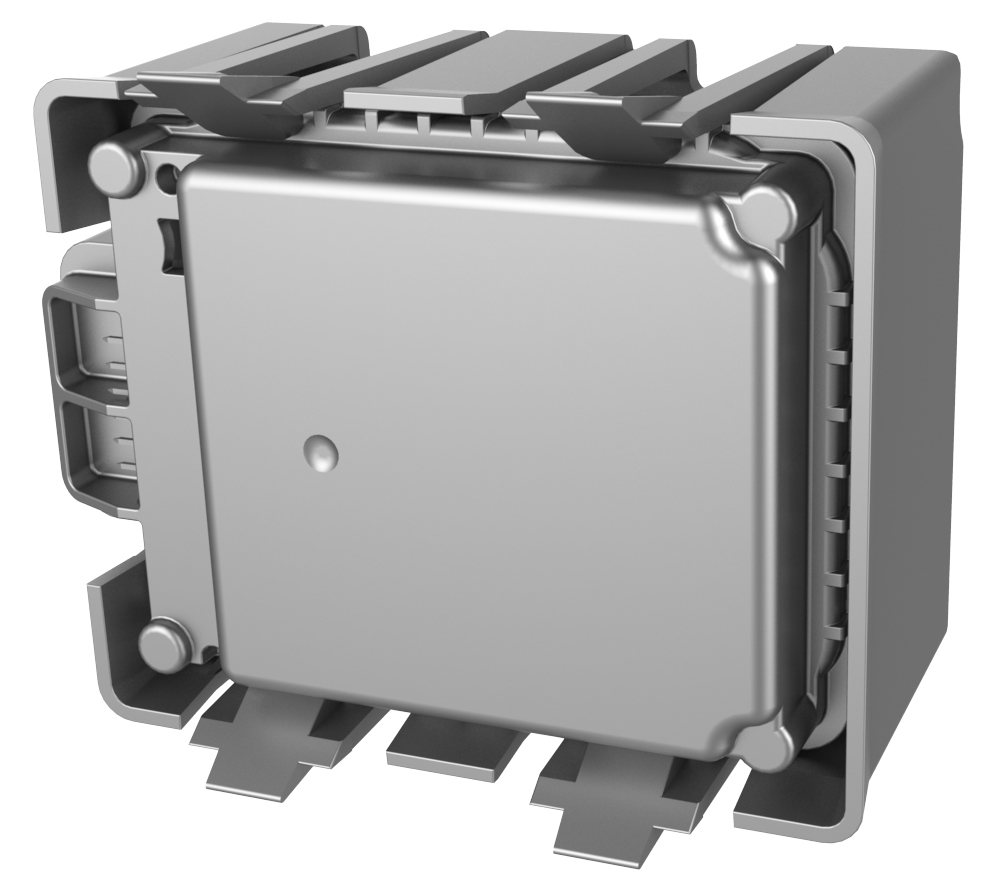

Release the clips that attach the radar sensor to the front radar sensor bracket, and then remove the sensor from the vehicle.

		1	Remove the front fascia. See Fascia - Front (Remove and Install).
		2	Release the clip that attaches the front radar sensor wiring harness to the front end carrier.
		3	Disconnect the electrical harness connector from the radar sensor.
		4	Release the clips that attach the radar sensor to the front radar sensor bracket, and then remove the sensor from the vehicle.

Install

Install the front radar sensor into the bracket.
Connect the front radar sensor electrical connector.
Connect the front radar sensor wiring harness to the front end carrier clip.
Install the front fascia. See Fascia - Front (Remove and Install).
Update the vehicle firmware using a laptop connected to Garage.
Perform a four wheel alignment check procedure. See Four Wheel Alignment (Check).
Perform the front radar sensor calibration procedure. See Sensor - Radar - Front (Calibration).

		1	Install the front radar sensor into the bracket.
		2	Connect the front radar sensor electrical connector.
		3	Connect the front radar sensor wiring harness to the front end carrier clip.
		4	Install the front fascia. See Fascia - Front (Remove and Install).
		5	Update the vehicle firmware using a laptop connected to Garage.
		6	Perform a four wheel alignment check procedure. See Four Wheel Alignment (Check).
		7	Perform the front radar sensor calibration procedure. See Sensor - Radar - Front (Calibration).
