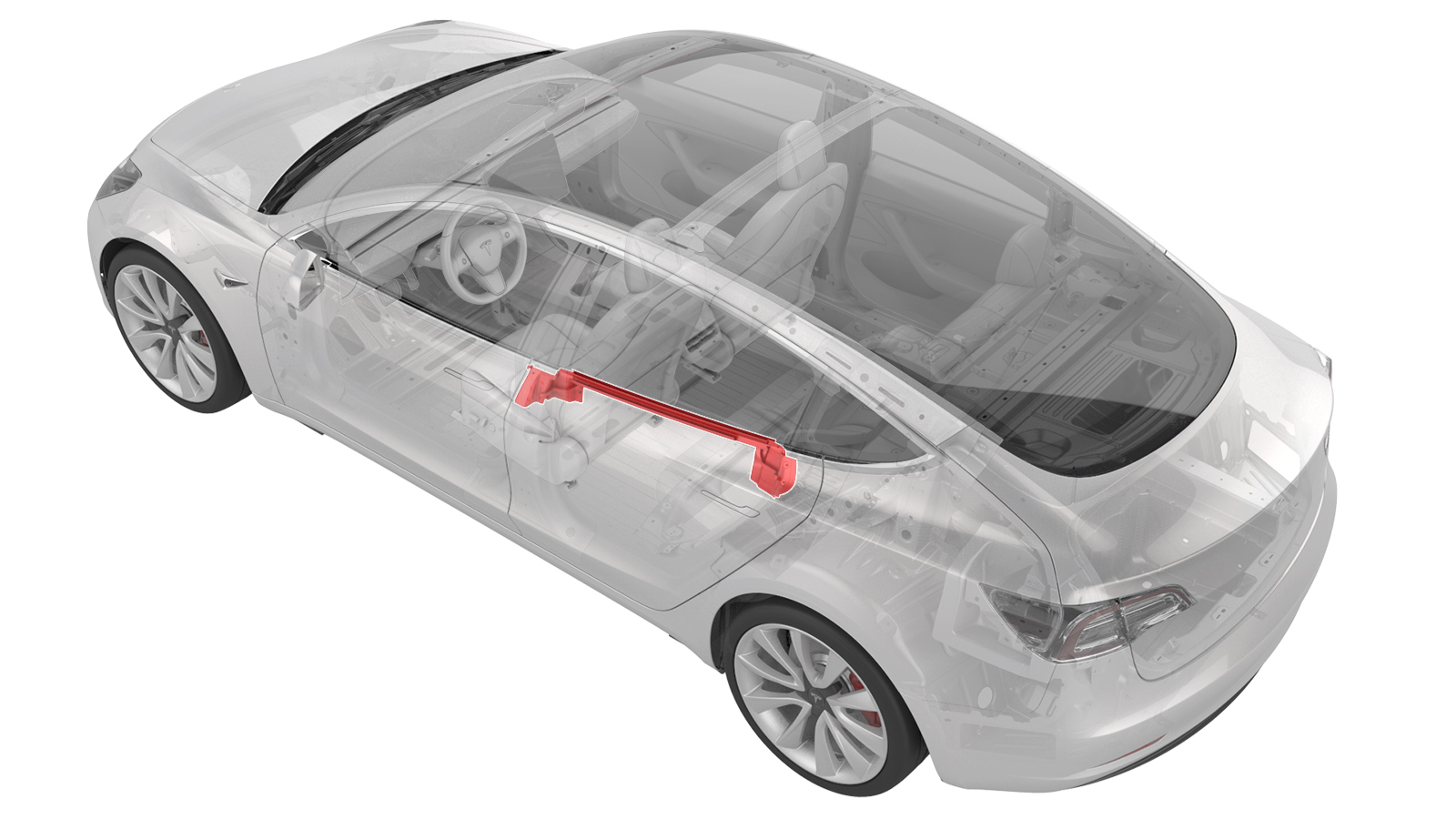

Seal - Inner Belt - Rear Door - LH (Remove and Replace)

Correction code 1170410211704102
Parent topic: 1170 - Seals Body Closures

Remove

  1. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).

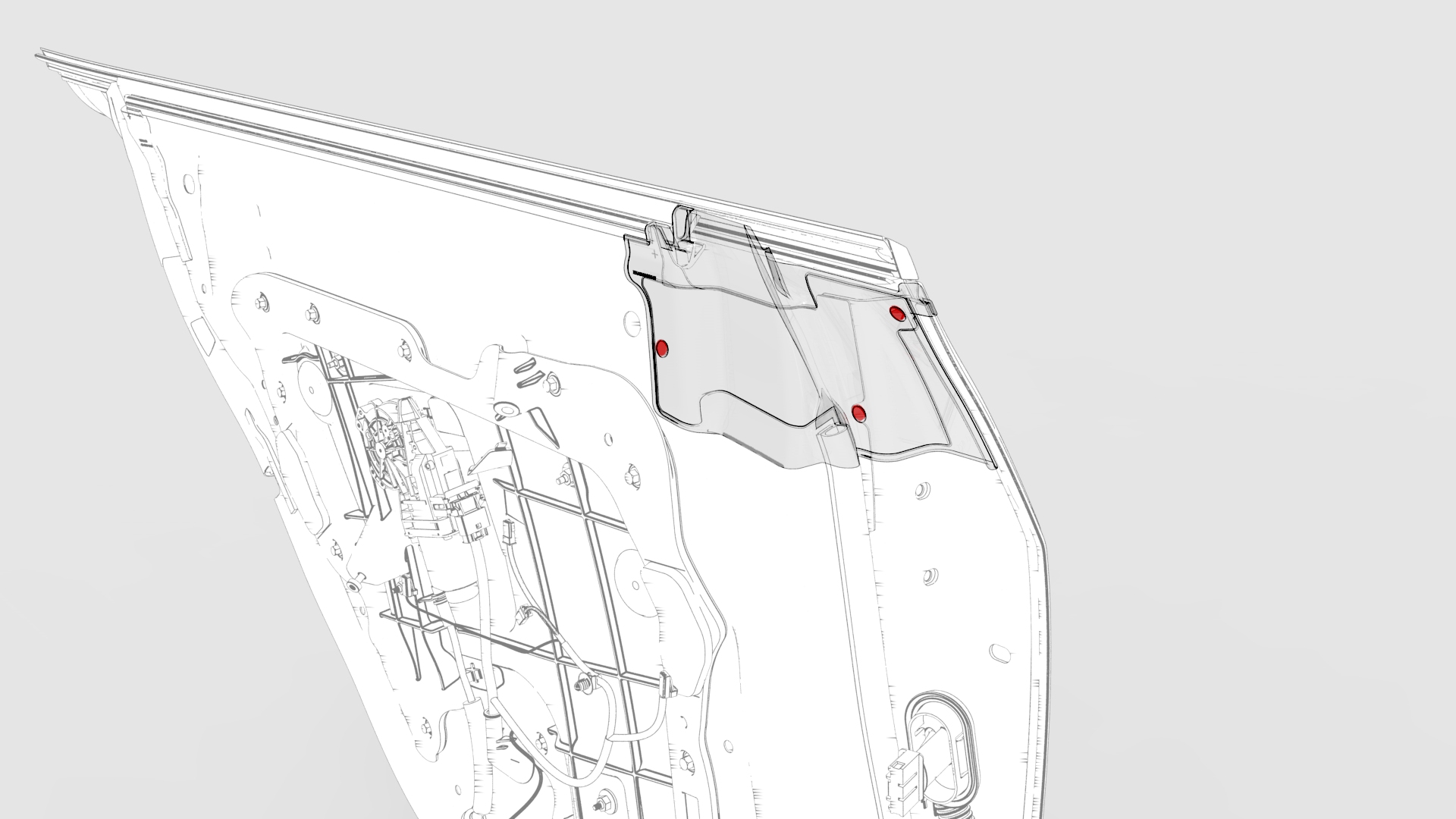

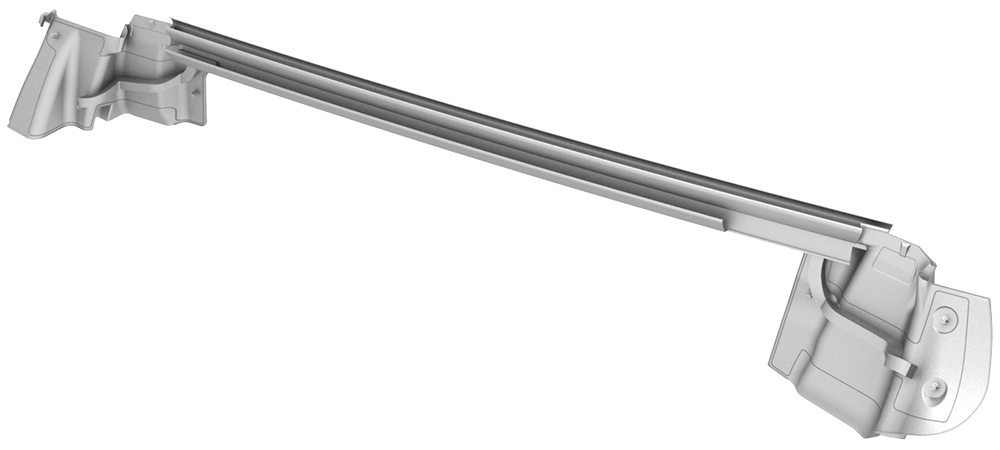

  2. Release the clips that attach the rear and front pieces of the inner belt seal to the rear door, and then remove the rear and front pieces of the inner belt seal.

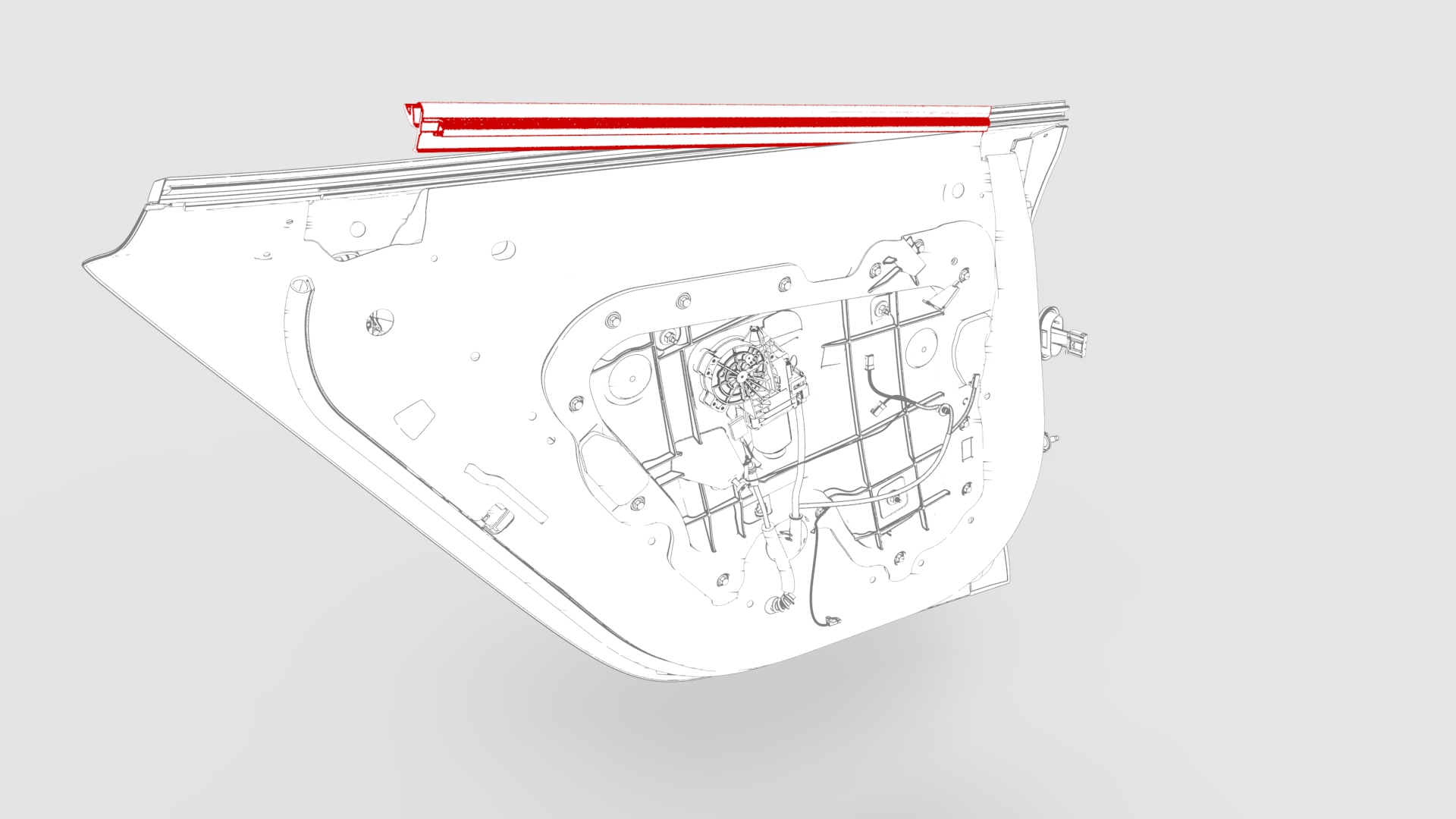

  3. Slowly peel the length of the strip piece of the seal from the rear door.
1Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
2Release the clips that attach the rear and front pieces of the inner belt seal to the rear door, and then remove the rear and front pieces of the inner belt seal.
3Slowly peel the length of the strip piece of the seal from the rear door.

Install

  1. Press the rear door inner belt seal downwards into the rear door.
  2. Install the clips that attach the inner belt seal to the rear door.
  3. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
1Press the rear door inner belt seal downwards into the rear door.
2Install the clips that attach the inner belt seal to the rear door.
3Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
