Cover - Shock Tower - LH (Remove and Replace)

Correction code 1225100112251001

Remove

Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).

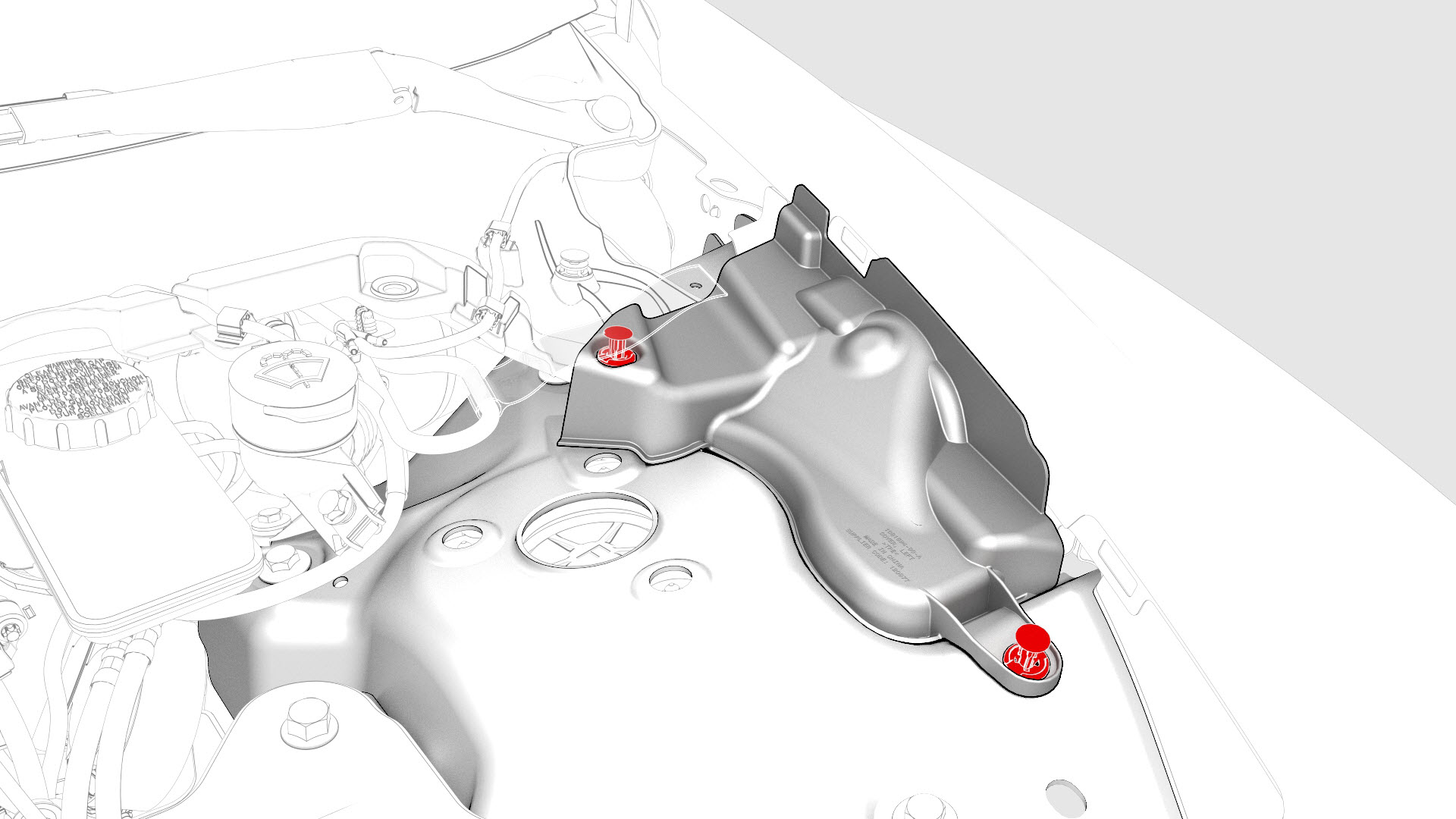

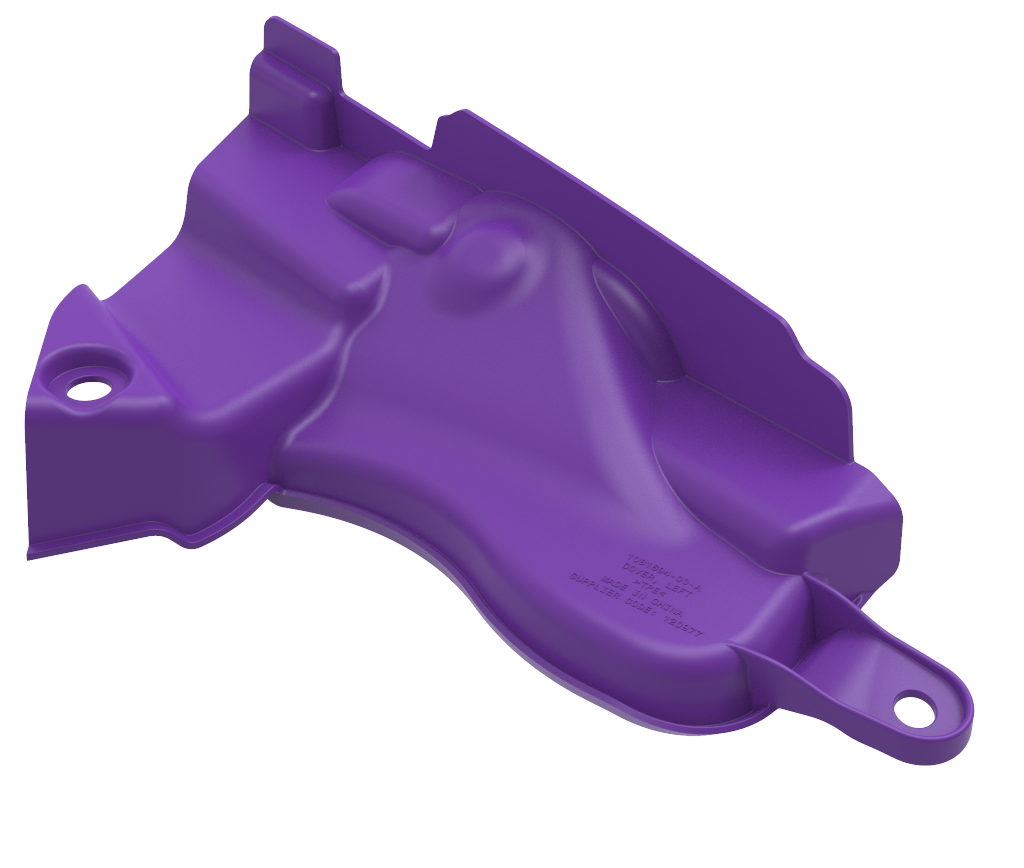

Release the clips that attach the LH shock tower cover to the vehicle, and then remove the cover from the vehicle.
LH shock tower cover shown, RH similar

	1	Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
	2	Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
	3	Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
	4	Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
LH shock tower cover shown, RH similar	5	Release the clips that attach the LH shock tower cover to the vehicle, and then remove the cover from the vehicle.

Install

Installation procedure is the reverse of removal.
