Tweeter - Front Door - LH (Remove and Replace)

Correction code 2121270221212702
Parent topic: 2121 - Audio System - Speakers Subwoofer Amplifier

Remove

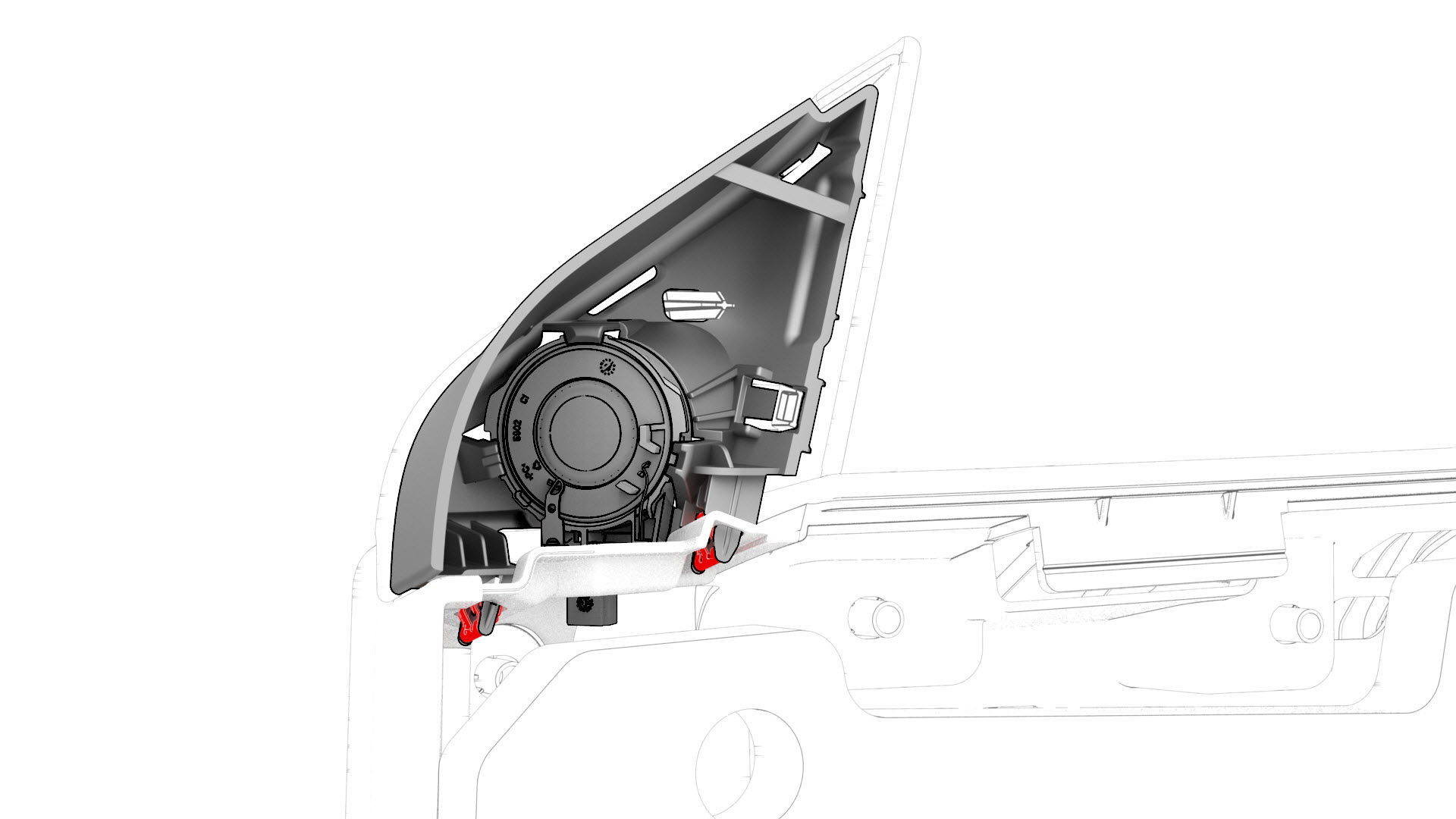

  1. Pull straight up to release the clips that attach the LH front door tweeter assembly to the door.
    Caution:
    Do not pull the tweeter assembly too far from the door panel, as the tweeter electrical connector is still attached.

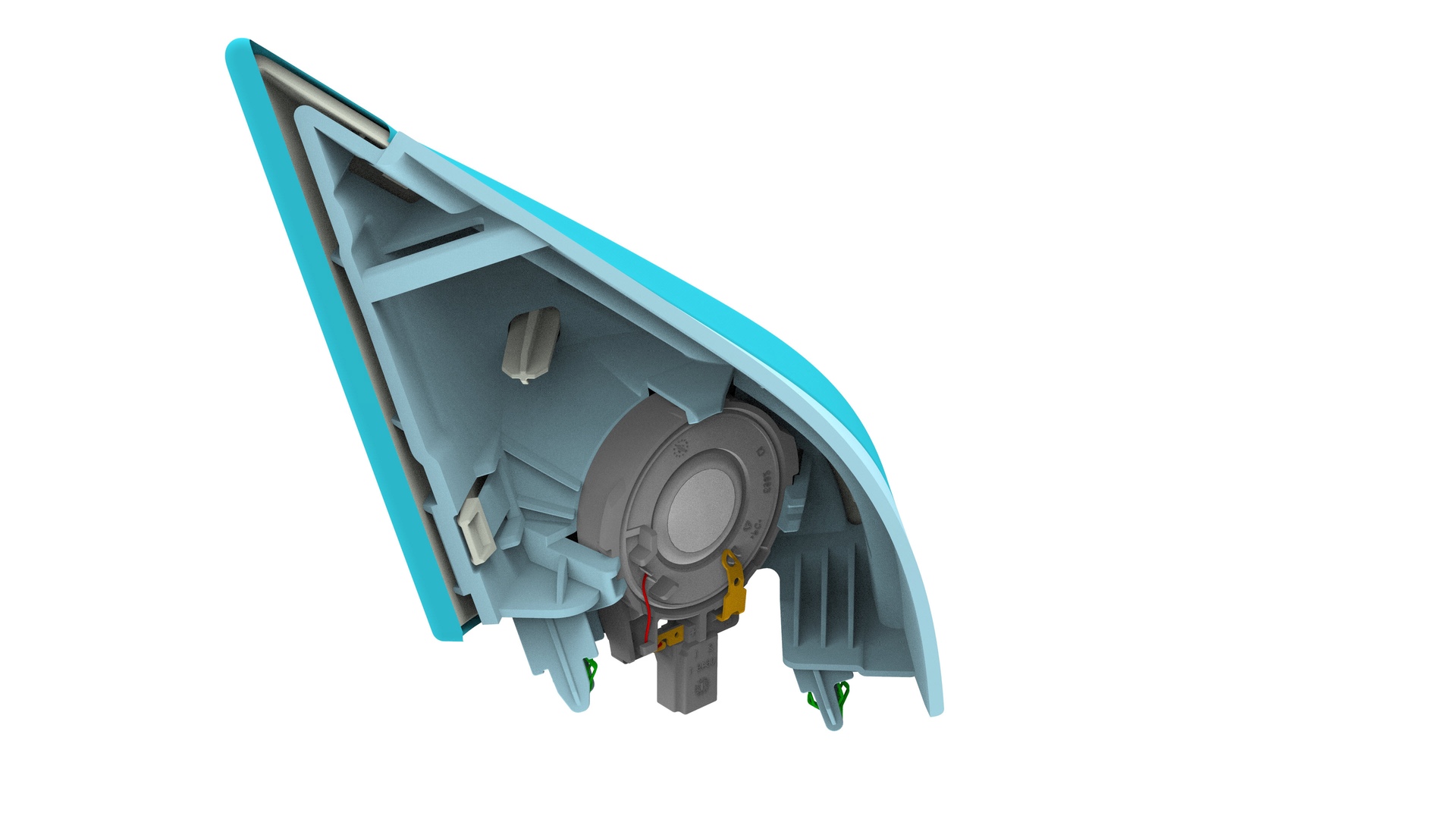

  2. Disconnect the electrical connector from the tweeter, and then remove the tweeter from the door.
1Pull straight up to release the clips that attach the LH front door tweeter assembly to the door.
Caution:
Do not pull the tweeter assembly too far from the door panel, as the tweeter electrical connector is still attached.
2Disconnect the electrical connector from the tweeter, and then remove the tweeter from the door.

Install

Installation procedure is the reverse of removal.
