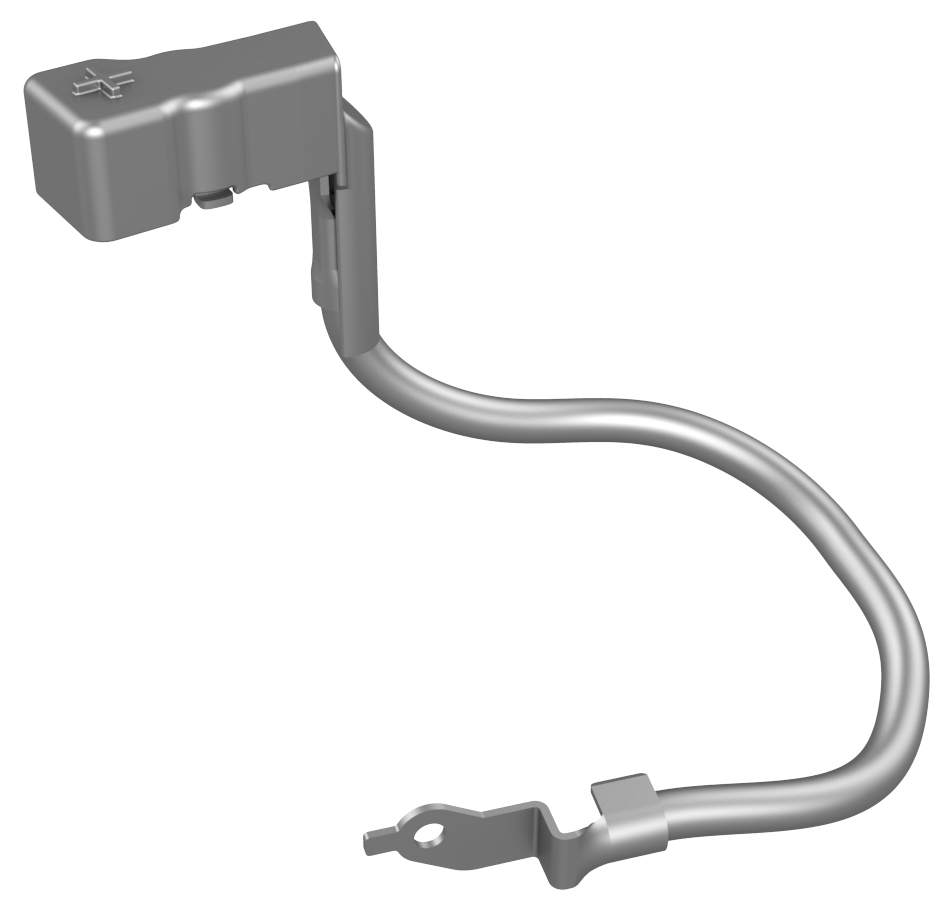

Harness - 12V Battery Positive (Remove and Replace)

Correction code 1710600217106002
Parent topic: 1710 - Harnesses

Remove

  1. Remove the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
  2. Remove the 12V auxiliary battery. See Battery - 12V (Remove and Replace).
  3. Remove the 12V battery bracket. See Bracket - 12V Battery (RWD) (Remove and Replace).
  4. Remove the bolt that attaches the thermal harness cover to the front body controller module, and then remove the cover from the module.
  5. Disconnect the thermal harness from the front body controller module connector.
  6. Release the clip that attaches the suction/liquid lines to the body near the TXV, and then move the electrical harness aside to gain access to the front body controller module.
  7. Remove the bolts (x9) that attach the front body controller module cover to the front body controller module, and then remove the cover.

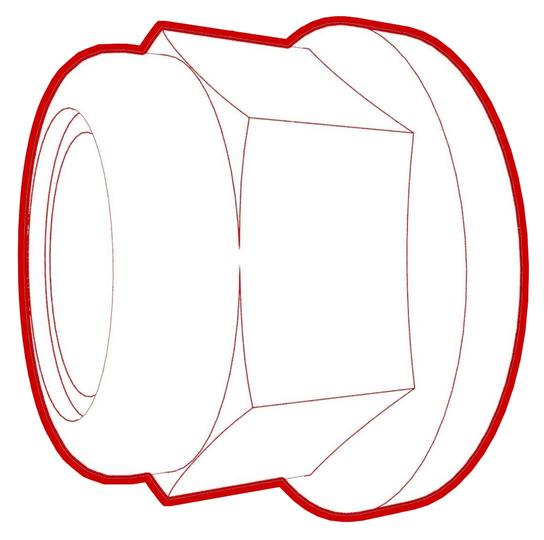

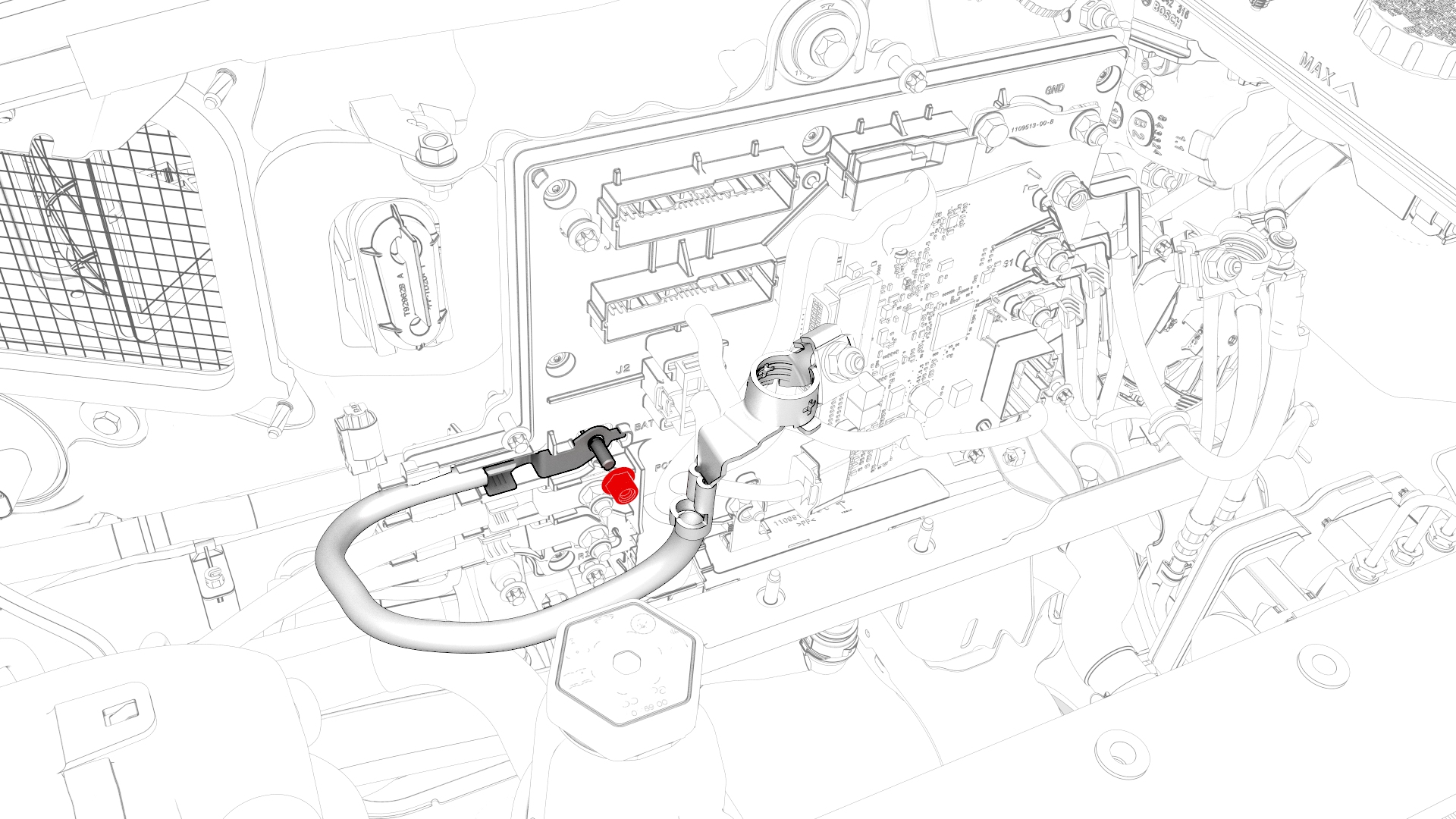

  8. Remove and discard the nut that attaches the battery positive cable to the front body controller module, and then remove the cable.
1Remove the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
2Remove the 12V auxiliary battery. See Battery - 12V (Remove and Replace).
3Remove the 12V battery bracket. See Bracket - 12V Battery (RWD) (Remove and Replace).
4Remove the bolt that attaches the thermal harness cover to the front body controller module, and then remove the cover from the module.
5Disconnect the thermal harness from the front body controller module connector.
6Release the clip that attaches the suction/liquid lines to the body near the TXV, and then move the electrical harness aside to gain access to the front body controller module.
7Remove the bolts (x9) that attach the front body controller module cover to the front body controller module, and then remove the cover.
8Remove and discard the nut that attaches the battery positive cable to the front body controller module, and then remove the cable.

Install

  1. Install the battery positive cable to the front body controller module, and then install a new nut to attach the cable to the module.
    Torque 8.5 Nm
  2. Visually inspect that the power cables exit the front body controller module neatly in their respective channels, and parallel to each other.
    Caution:
    Make sure that no cables or wires will be pinched when the front body controller module cover is installed.
  3. Install the front body controller module cover to the front body controller module, and then install the bolts (x9) that attach the cover to the module.
    Torque 6 Nm
  4. Connect the thermal harness to the front body controller module connector.
  5. Fasten the clip that attaches the suction/liquid lines to the body near the TXV.
  6. Install the thermal harness cover to the front body controller module, and then install the bolt that attaches the cover to the module.
    Torque 6 Nm
  7. Install the 12V battery bracket. See Bracket - 12V Battery (RWD) (Remove and Replace).
  8. Install the 12V auxiliary battery. See Battery - 12V (Remove and Replace).
  9. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
1Install the battery positive cable to the front body controller module, and then install a new nut to attach the cable to the module.
Torque 8.5 Nm
2Visually inspect that the power cables exit the front body controller module neatly in their respective channels, and parallel to each other.
Caution:
Make sure that no cables or wires will be pinched when the front body controller module cover is installed.
3Install the front body controller module cover to the front body controller module, and then install the bolts (x9) that attach the cover to the module.
Torque 6 Nm
4Connect the thermal harness to the front body controller module connector.
5Fasten the clip that attaches the suction/liquid lines to the body near the TXV.
6Install the thermal harness cover to the front body controller module, and then install the bolt that attaches the cover to the module.
Torque 6 Nm
7Install the 12V battery bracket. See Bracket - 12V Battery (RWD) (Remove and Replace).
8Install the 12V auxiliary battery. See Battery - 12V (Remove and Replace).
9Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
